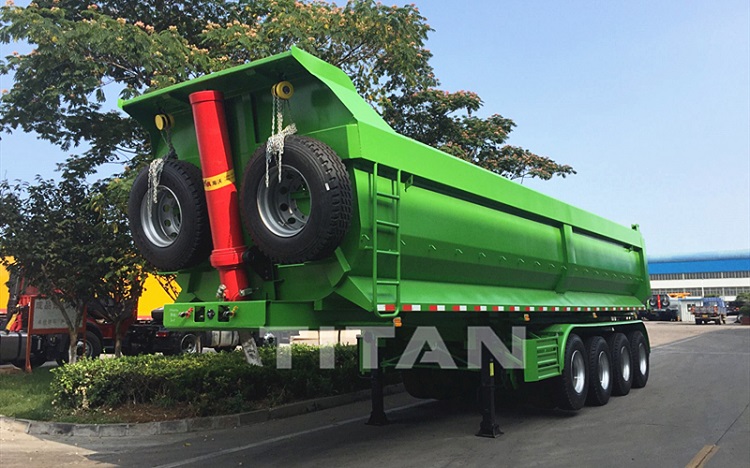

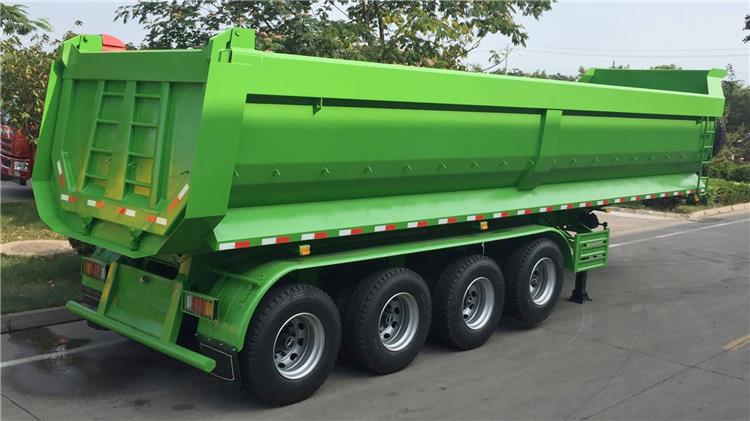

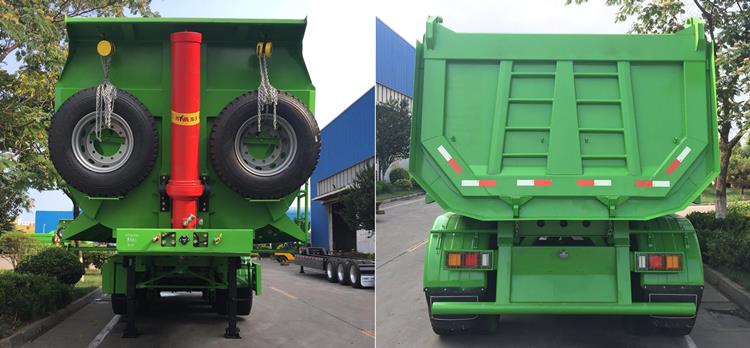

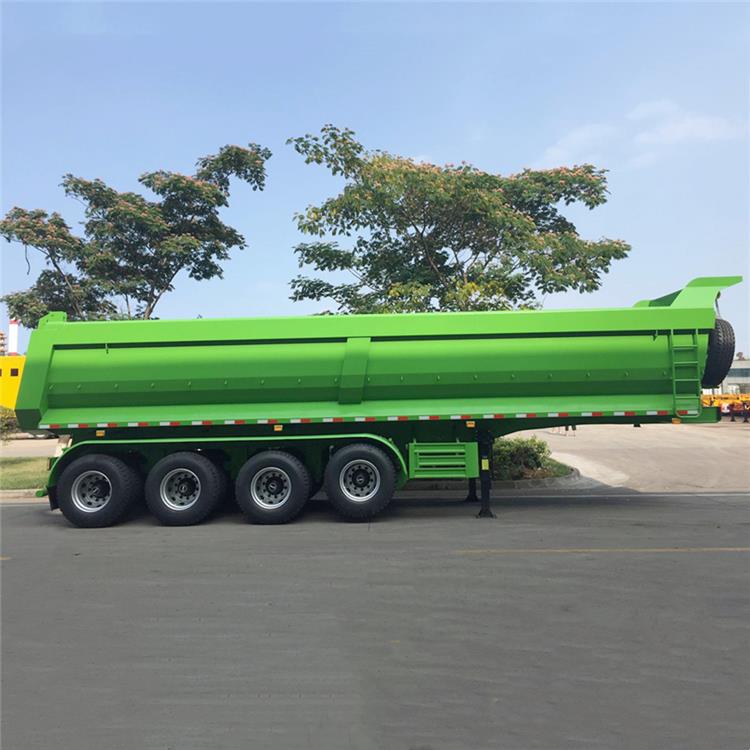

TITAN 4 axle 40m3 semi dump trailer equipped with reliable hydraulic HYVA cylinder. We can customize the 4 axle 40m3 semi dump trailer according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.
TITAN 4 axle 40m3 semi dump trailer adopt high strength steel to make it durable when loading the sand or small stones or rocks. And the loading capacity is 40t, 60t, 80t.
4 Axle 40m3 Semi Dump Trailer for Sale In Zambia
Semi Tipper Trailer | 4 Axle U Shape Tipper Trailer for Sale in Nigeria
4 Axle 40m3 Semi Dump Trailer for Sale In Zambia
Dimension: 11280mmx2495mm x3970mm ( inside dimension )
Tare Weight (semi trailer): About 15600kg
Total volume(m³): 30m³ or less than 100tons
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Shipping terms: Transported by the bulk carrier in a RORO
1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.
2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.
4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5. The leaf spring is widened and thickened, the shock absorption effect is good.
6. Strengthened Ribs, unique structure design to maximize the payload.
