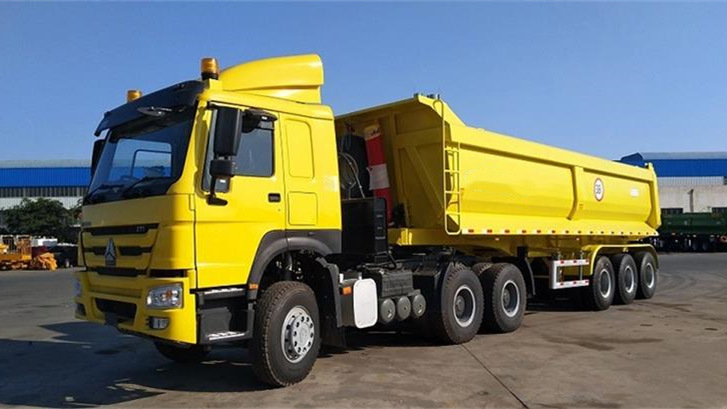

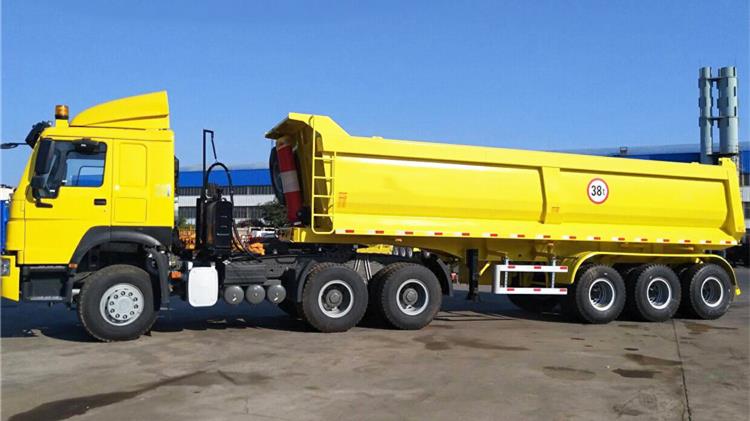

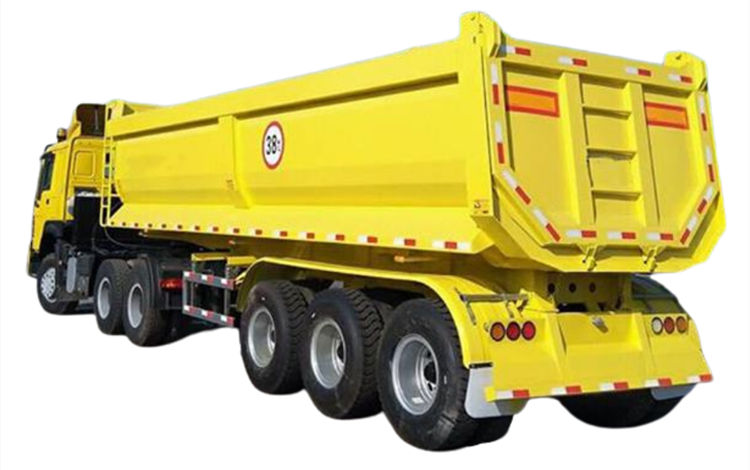

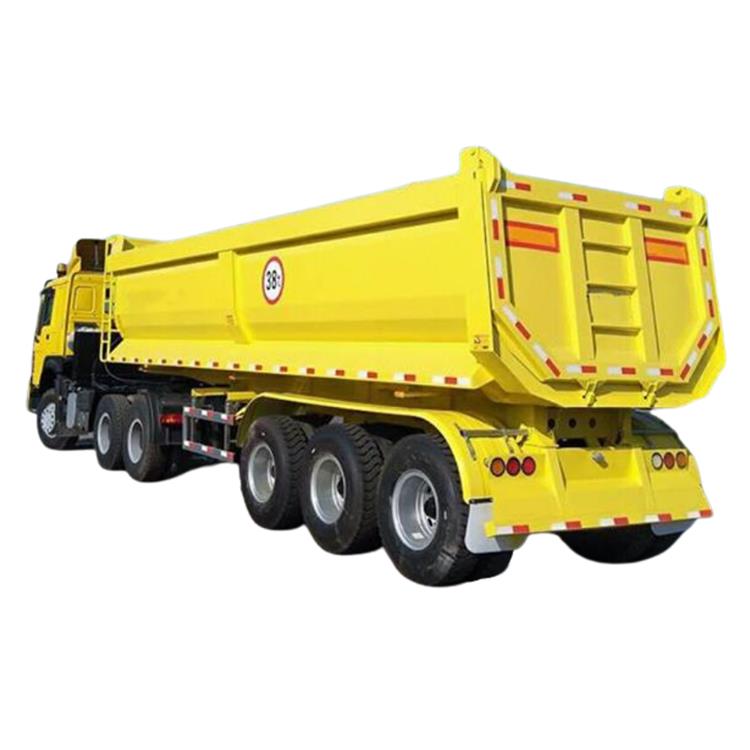

35 Cubic End Dump Trailer
35 Cubic End Dump Trailer

35 Cubic End Dump Trailer

17500 USD

TITAN different types of 35 cubic end dump trailer to meet your different needs, like 3 Axle Tip Trailer, 28cbm dump tipper trailer,  30cbm tipper trailer, 100 ton tipper semi trailer, hydraulic tipper trailers.

Product description:

35 Cubic end dump trailer is a big trailer that usually lifts when dumping its hall in a chosen location. 3 Axle Tip Trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.

TITAN 35 cubic end dump trailerr adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

35 Cubic End Dump Trailer for Sale In Zimbabwe Harare

35 Cubic End Dump Trailer for Sale In Zimbabwe Harare

35 Cubic End Dump Trailer for Sale In Zimbabwe Harare

35 Cubic End Dump Trailer for Sale In Zimbabwe Harare

35 Cubic End Dump Trailer for Sale In Zimbabwe Harare

35 Cubic End Dump Trailer for Sale In Zimbabwe Harare



Specifications:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 40m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set



Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Tipper Trailer



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
