The thickness of the side beam of superlink trailer for sale is 160mm channel steel, the through beam is 100mm channel steel, and the distance between the supports of the inclined support frame does not exceed 500mm, which can ensure that the superlink trailer for sale is not easy to deform.
Superlink trailer for sale Enhanced payload capacity, combined with two semi-trailers, can load up to 40% more cargo than a single trailer within the legal weight limit.
Superlink trailer for sale reduces trips and reduces costs, higher capacity reduces the number of trips required, and reduces fuel consumption per ton-mile by 15-20% compared to a single trailer configuration.
Aerodynamic design: Modern superlink trailers are often streamlined to reduce drag.
Superlink trailer for sale can be split for short-distance transportation, or combined for long-distance transportation. Suitable for a variety of cargo types.

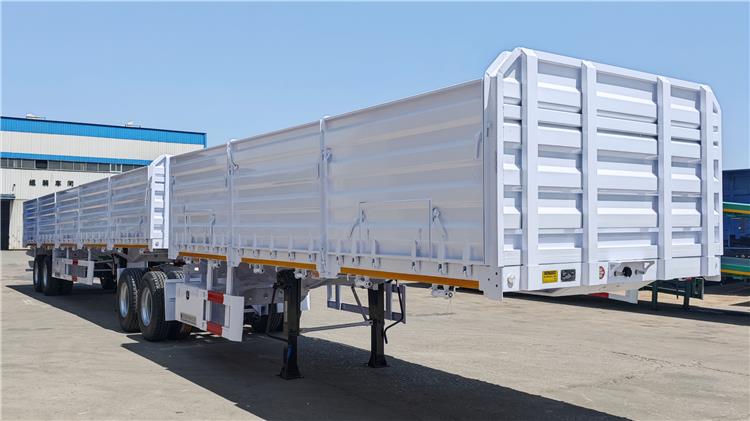

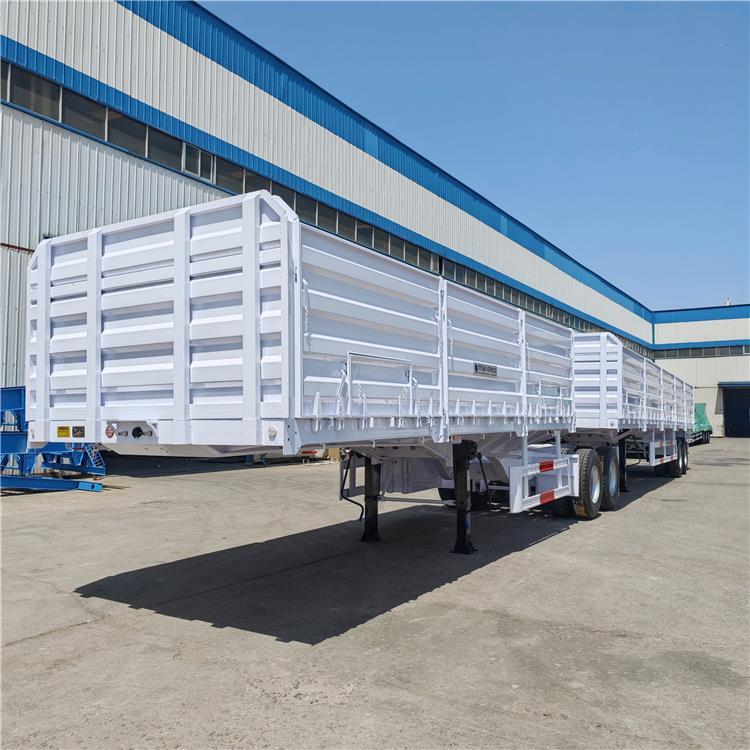

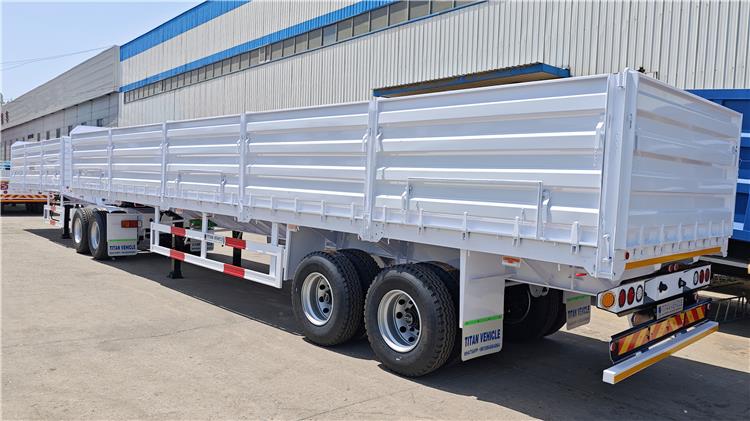

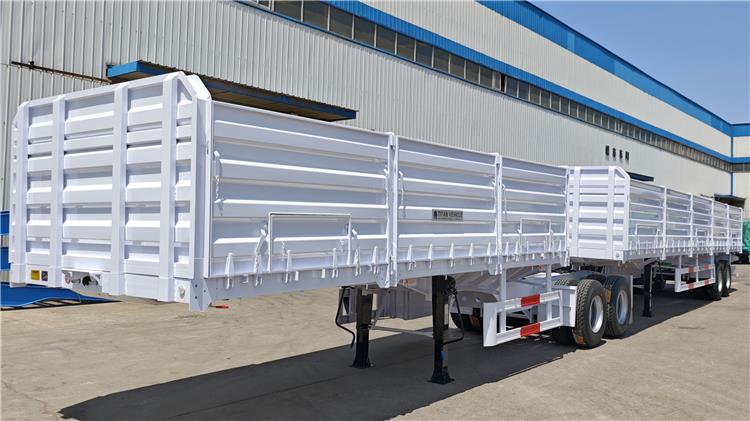

2+2 Axle Superlink Trailer for Sale In Zimbabwe - Side Wall Trailer
2+2 Axle Superlink Trailer for Sale In Zimbabwe - Side Wall Trailer
2+2 Axle Superlink Trailer for Sale In Zimbabwe - Side Wall Trailer
2+2 Axle Superlink Trailer for Sale In Zimbabwe - Side Wall Trailer
2+2 Axle Superlink Trailer for Sale In Zimbabwe - Side Wall Trailer
Model: Superlink Trailers for Sale
Dimension: 19498*2500*3200mm
The front trailer size: 9800*2500*3200mm
The rear trailer size: 12500*2500*3200mm
Loading capacity(ton): ≤80T

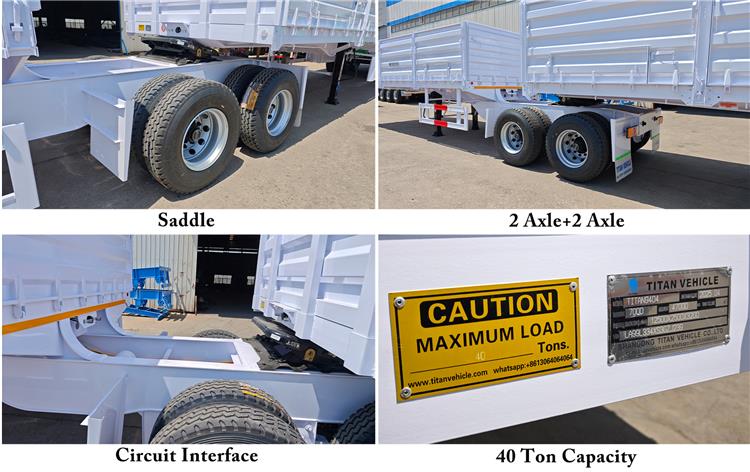

Axles: 2+2 axles, TITAN Brand
Tire: 16 units, 12R22.5

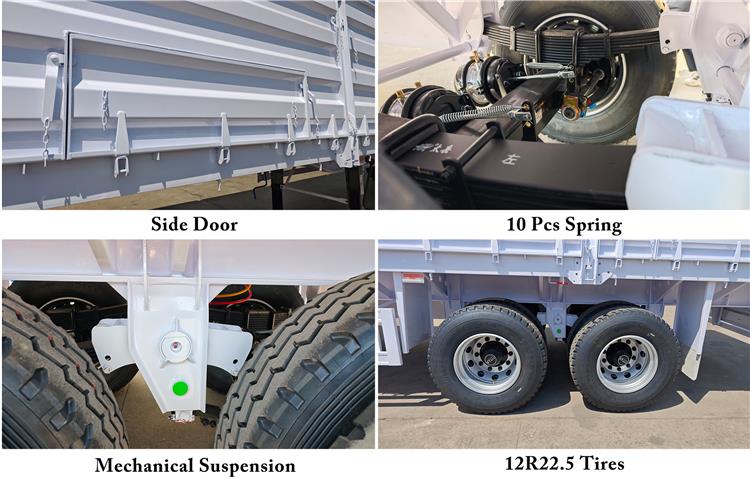

Suspension: Mechanical Suspension
Superlink trailer for sale uses low-carbon high-strength alloy steel Q345 to manufacture the main beam, which has a higher load-bearing capacity and a service life of more than 10 years. Superlink trailer for sale uses automatic submerged arc welding technology to weld the main beam.
There is no interface between the upper and lower plates of the main beam of Superlink trailer for sale, which ensures the integrity of the main beam and makes the main beam more solid and durable. The front part of Superlink trailer for sale adopts an internally reinforced double web design to prevent the main beam from deforming.
The upper plate thickness of the main beam of Superlink trailer for sale is 14mm, the width is 140mm, the lower plate thickness is 16mm, the width is 140mm, the middle plate height is 500mm, and the thickness is 8mm.

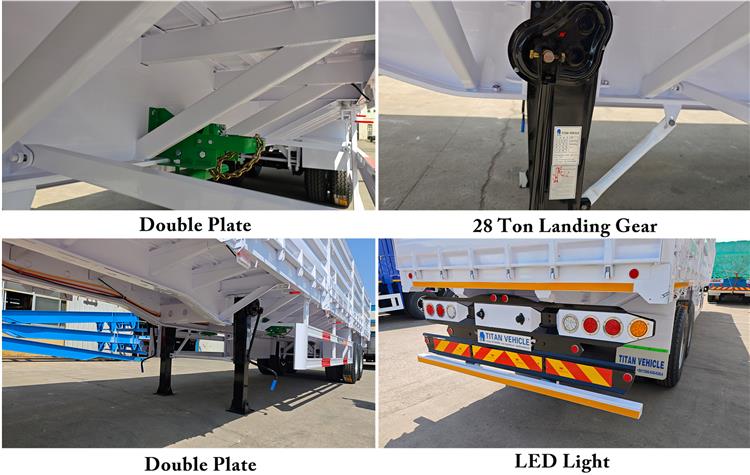

The lower plate at the gooseneck of the main beam of Superlink trailer for sale adopts a double-layer reinforced plate, and the middle beam also adopts a double-layer reinforced plate, which has small deformation under heavy load and better performance.
Superlink trailer for sale can be equipped with the world-renowned brand JOST landing gear, which has stronger bearing capacity and longer service life. The landing gear of Superlink trailer for sale adopts a buckle-type thickening design, the front and rear triangle plates are reinforced, the middle part is reinforced with high-strength bending parts, and the legs are reinforced with through beams and diagonal braces.
