Skeleton semi trailer is specially designed to carry various cargo containers. Skeleton semi trailer includes 20, 40, 45 foot and other types. It is dedicated to transporting containers. It contains two kinds of container chassis trailer for long-distance transportation and terminal trailer for port transportation.
Skeleton Semi Trailer Transport to 20ft 40ft Container
Skeleton Semi Trailer Transport to 20ft 40ft Container

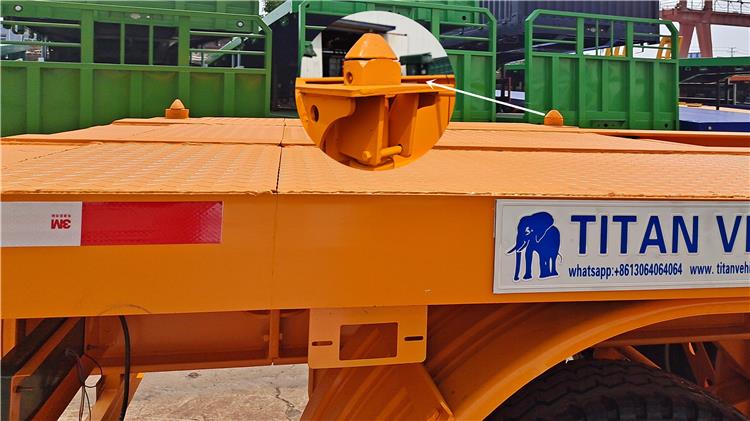

TITAN skeleton semi trailer has 12 sets container locks on the trailer,which makes our skeeton trailer can carry both 40 ft containers and 20 ft containers.
TITAN 40 ft skeleton semi trailer uses 13 tons axles and 16 tons brake lining.which makes the skeleton trailer has shorter brake distance and improve the safety of the trailer.
Skeleton semi trailer adopts 12.00R22.5 tire with 12 units. The main beam of our skeleton semi trailer.With the most advanced technology,the main beam of our trailer is very perfect.

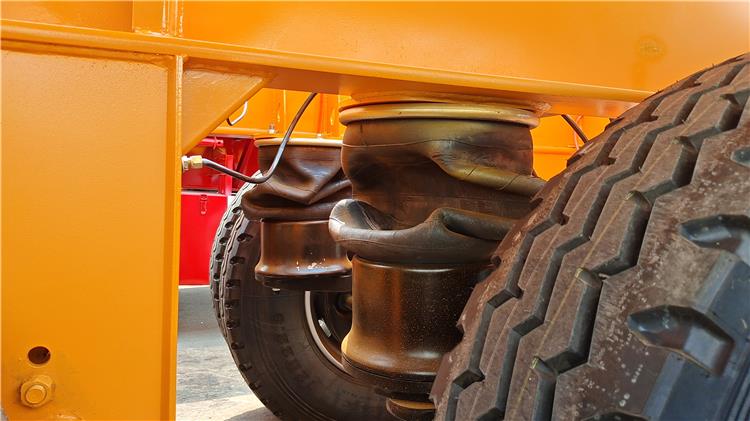

TITAN skeleton semi trailer equips with air suspension,you can also choose mechanical suspension.
Tare Weight: About 7.1T

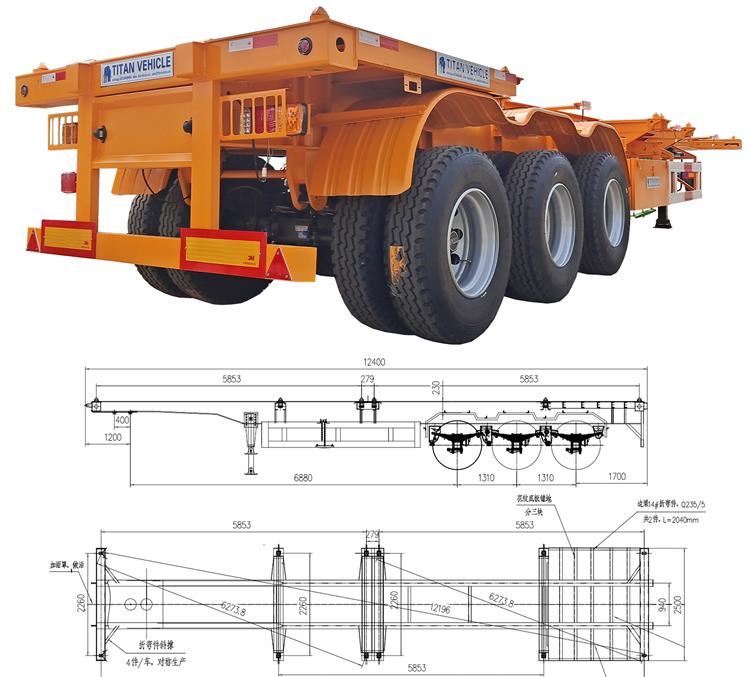

Dimension(mm): 12360x2500x1520mm

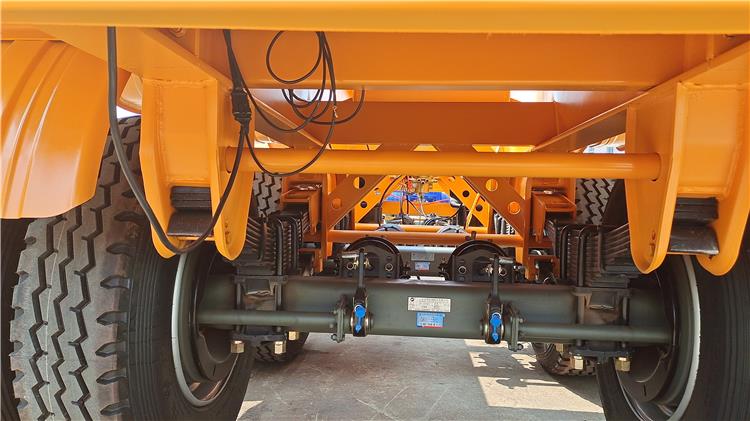

Axles: 3 axles, 13T/16T ,FUWA/ BPW

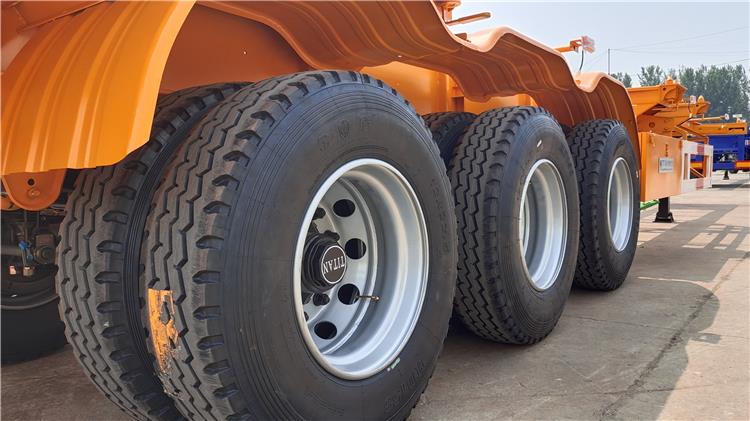

Tire: 12 units, 12.00R22.5 or 315/80R22.5
Suspension: Mechanical suspension or Air suspension
King Pin: JOST brand 2.0 or 3.5 inches (bolted or welded)
Landing Gear: JOST brand D200T
