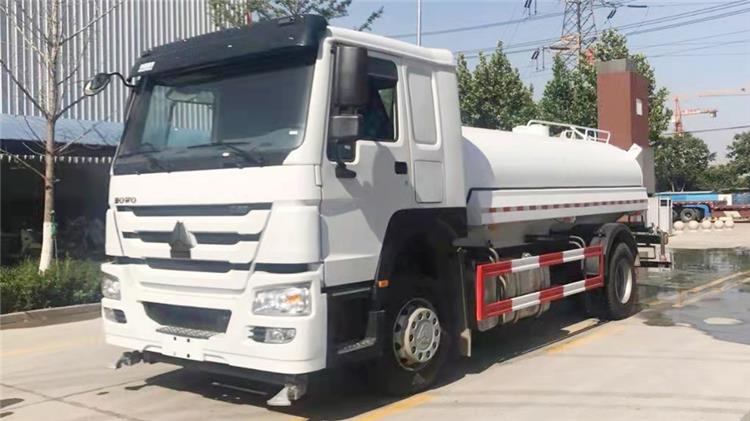

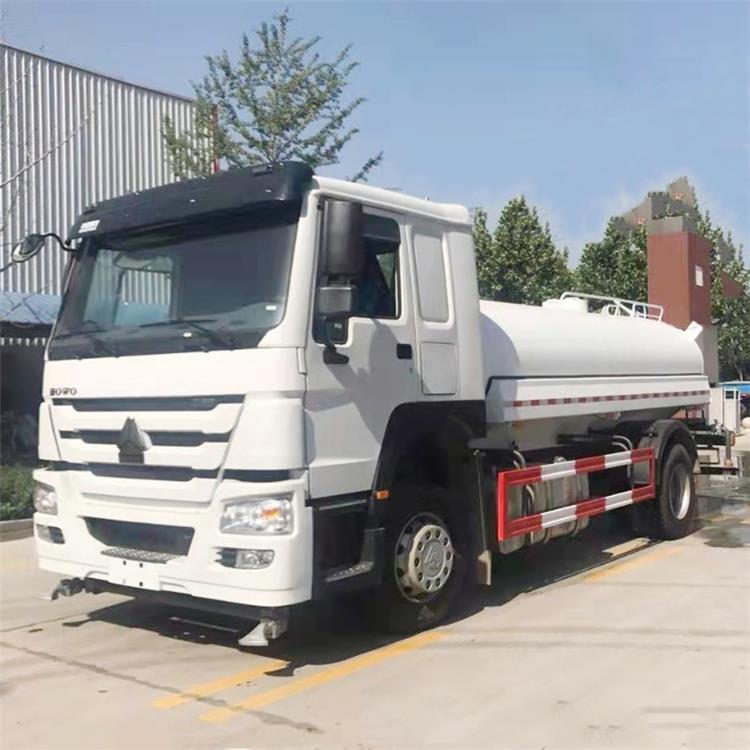

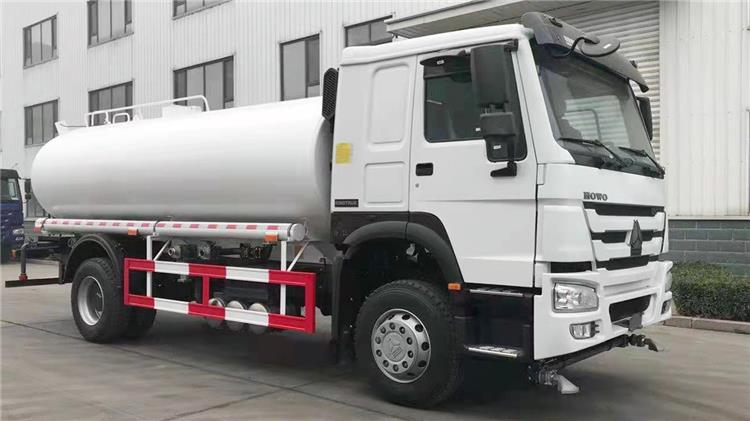

Heavy-duty Howo 4x2 7 Wheels Water Tank Truck installed with 6 cylinder engine. Stronger power, more suitable used in rough road.
The Howo 4x2 7 Wheels Water Tank Truck uses 5 mm thick carbon steel tanker body materials. Keep the truck more Strong and more durable. The heavy-duty Howo 4x2 7 Wheels Water Tank Truck driving type optional is 4X2, 6X4, 8X4 with a capacity from 10000 liters to 30000 liters.
Howo 4x2 7 Wheels Water Tank Truck Water Bowser with Sprinkler for Sale Price
Howo 4x2 7 Wheels Water Tank Truck Water Bowser with Sprinkler for Sale Price
Howo 4x2 7 Wheels Water Tank Truck Water Bowser with Sprinkler for Sale Price
Chassis Model: ZZ1167M4617C
Driving Type: Left Hand Driving (Right Hand Driving is optional)
Cabin: HW70, without sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
Engine
Make: SINOTRUK, Diesel 4-stroke direct injection diesel engine
Engine Model: WD615.60, Euro 2, 266 HP, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Displacement: 9.726 L
Transmission: HW13710, 10F & 2R, with PTO
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering: ZF power steering, model ZF8118, hydraulic steering with power assitance
Front Axle: HF7, 1x7000 KGS, Steering with doubleT-cross section beam
Rear Axle: MCY13, 1x13000 KGS, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 4.11
Propeller Shaft: Double universal joint propeller shaft with gear-shaped coupling flange
Chassis
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members
Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires: 295/80R22.5 tubeless tires with one spare tire.
Optional: 11.00-20, bias tires.
Fuel Tank: 350 L

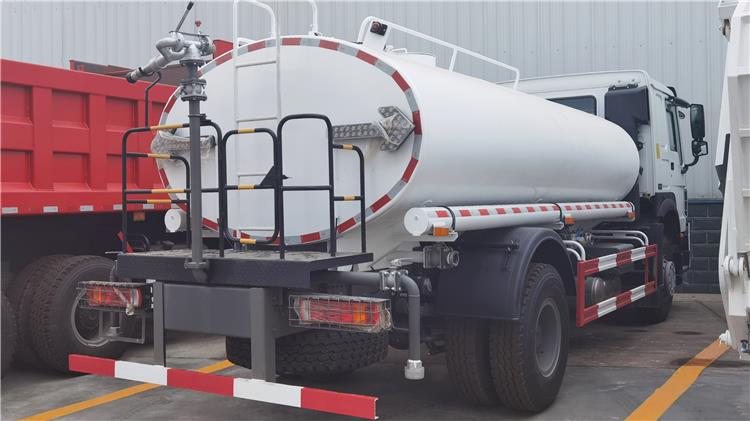

Tank Body: 10 Cubic Meters, with front and rear sprinkling system
Overall Dimension: 8300*2500*3050 mm
TITAN is authorised distributor of SINOTRUK, We produce New SINOTRUK Howo Trucks according to your order.
SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.
Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.
SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.
SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
