30CBM 8x4 Dump Truck 371
30CBM 8x4 Dump Truck 371

30CBM 8x4 Dump Truck 371

47000 USD

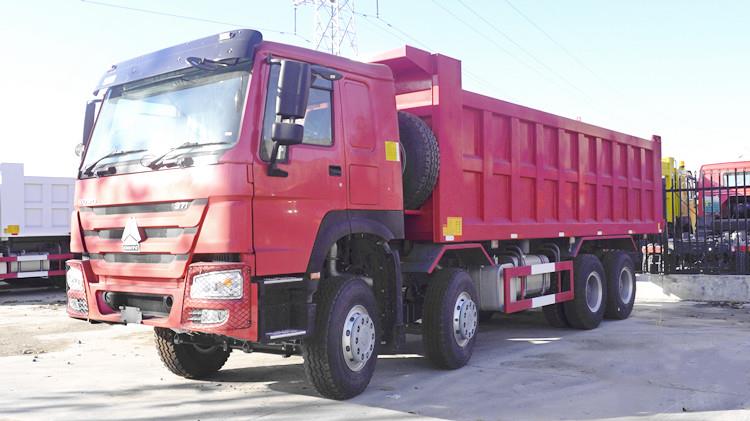

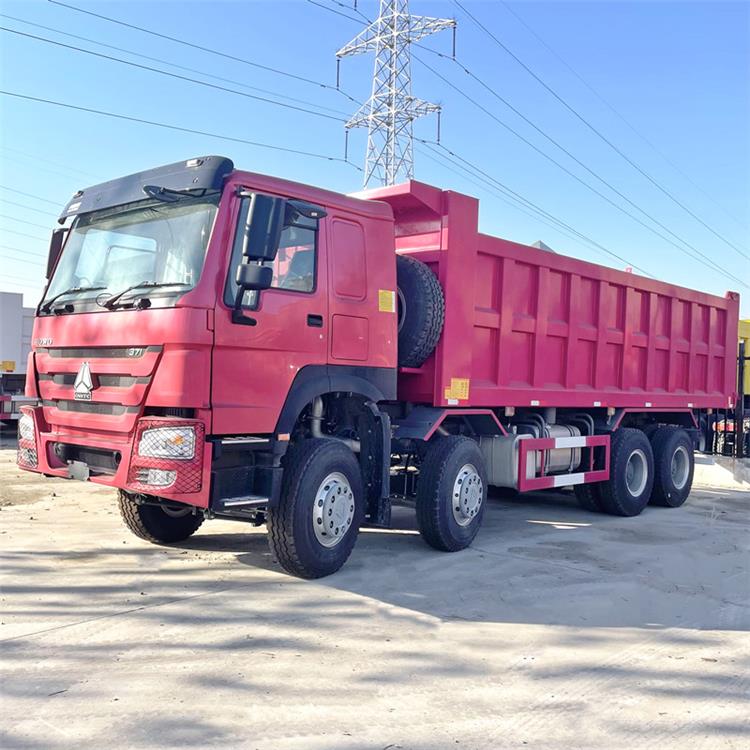

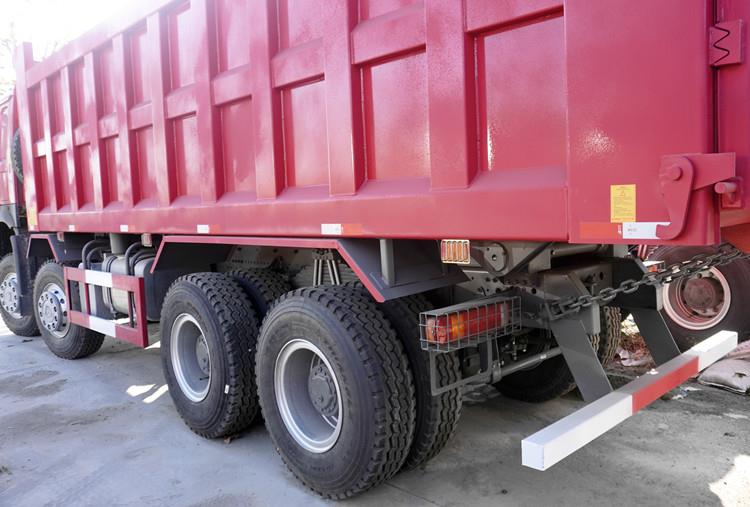

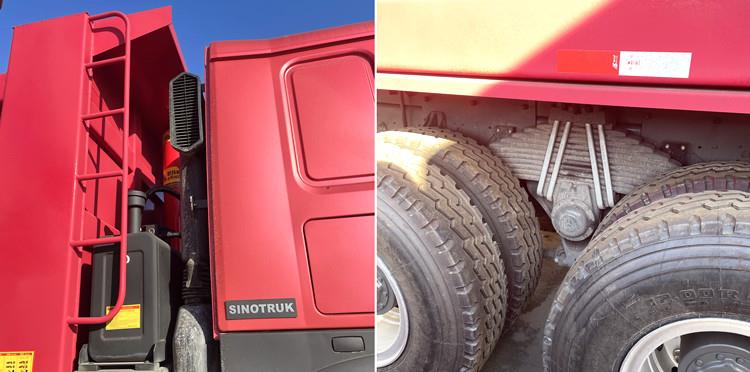

30cbm Howo 8x4 dump truck 371 can be used for conveying sand, chippings, and other materials from one place to another.

Description:

30cbm Howo 8x4 dump truck 371 can be used for conveying sand, chippings, and other materials from one place to another.

Since the 8x4 dump truck can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.

Sinotruk 30CBM Howo 8x4 Dump Truck 371 Price List

Sinotruk 30CBM Howo 8x4 Dump Truck 371 Price List

Sinotruk 30CBM Howo 8x4 Dump Truck 371 Price List

Sinotruk 30CBM Howo 8x4 Dump Truck 371 Price List

Sinotruk 30CBM Howo 8x4 Dump Truck 371 Price List



Specification:

MODEL: ZZ3317N3567W

ENGINE:

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water

cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output: 371PS (273kW) at 2000 rpm

Maximum torque: 1560Nm at 1200-1500rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse  Ratio: 5.73

FRONT AXLE: New HF9 series, with drum brake system

REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

STEERING: ZF8118, hydraulic steering with power assistance  Ratio: 22.2-26.2:1

WHEELS&TYRES:

Rims: 8.5-20,10 hole-steel

Types: 12.00R20

CARGO BODY: 7300*2300*1500, bottom 8mm, side 6mm, Front lift system (Other sizes are optional)

DRIVER CAB:

Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner

DIMENSIONS(in mm):

Wheel base (mm): 1800+3500+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/2295

Approach angle(°):19

Departure angle(°):20

Overall Dimension (mm):11745x2496x3550

WEIGHT(in kg):

Permissible loading capacity (kg):16000

Dead weight (kg):15000

Gross vehicle weight (kg):31000

Front axle loading capacity (kg):2*9000

Rear axle loading capacity (kg):2*16000

PERFORMANCE:

Maximum driving speed(km/h):75(reference data)

Maximum gradeability (%):36

Minimum ground clearance(mm):314

Minimum turning radius (m):15

Fuel consumption(L/100km):40(reference data)



About SINOTRUK:

TITAN is authorised distributor of SINOTRUK, We produce New SINOTRUK Howo Trucks according to your order.



SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.

Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.



SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.

SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
