The engine brands that shacman x3000 can match are mainly Weichai and Cummins, with displacements ranging from 6L to 13L and power ranging from 180-560 horsepower. The maximum output torque of Weichai engine can reach 2550N.m, and the maximum output torque of Cummins engine can reach 2500N.m. At the same time, it can match the Euro VI emission engine required by the high-end market.
The axle of shacman truck x3000 is an important part of the running system. The axle is connected to the frame through the suspension, and the car wheels are installed at both ends. The function is to transmit the force and torque in all directions between the frame and the wheel.
The shacman tractor head axle distributes the power input by the universal transmission device to the left and right drive wheels through speed reduction and torque increase, and changes the direction of rotation, so that the car can move, and allows the left and right drive wheels to rotate at different speeds.
Shacman X3000 Tractor Head | Shacman Truck X3000 Tanzania
Shacman X3000 Tractor Head | Shacman Truck X3000 Tanzania
Shacman X3000 Tractor Head | Shacman Truck X3000 Tanzania
Shacman X3000 Tractor Head | Shacman Truck X3000 Tanzania
Shacman X3000 Tractor Head | Shacman Truck X3000 Tanzania

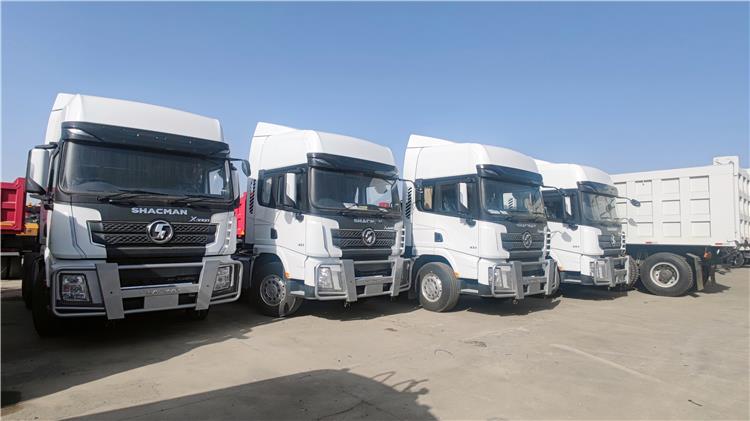

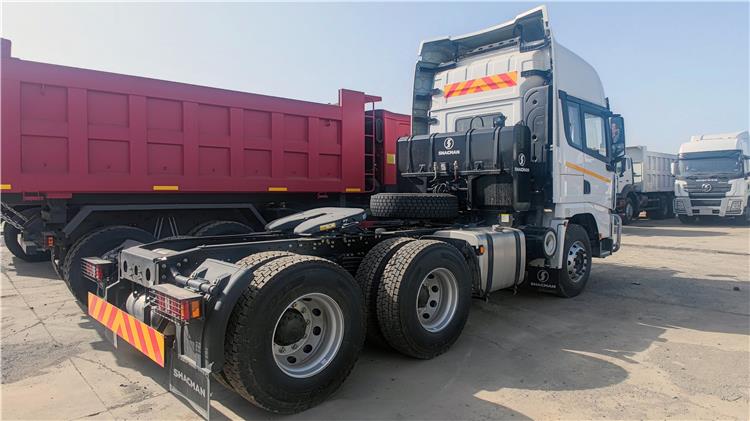

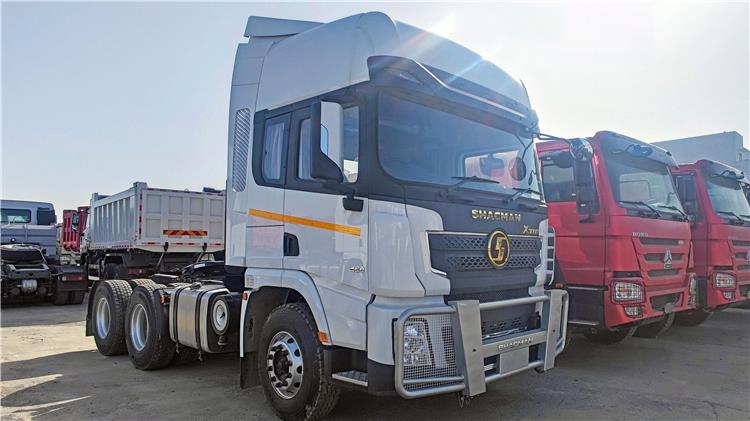

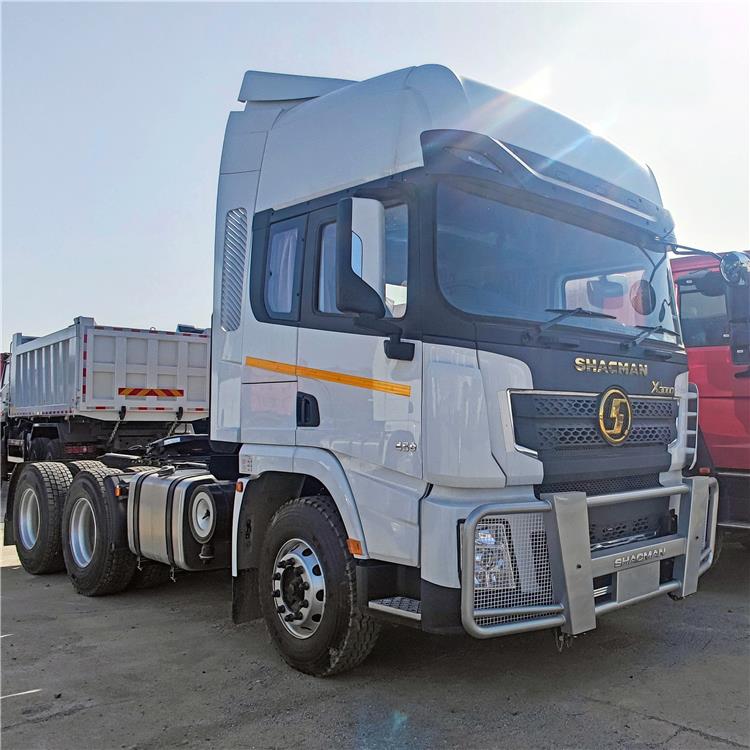

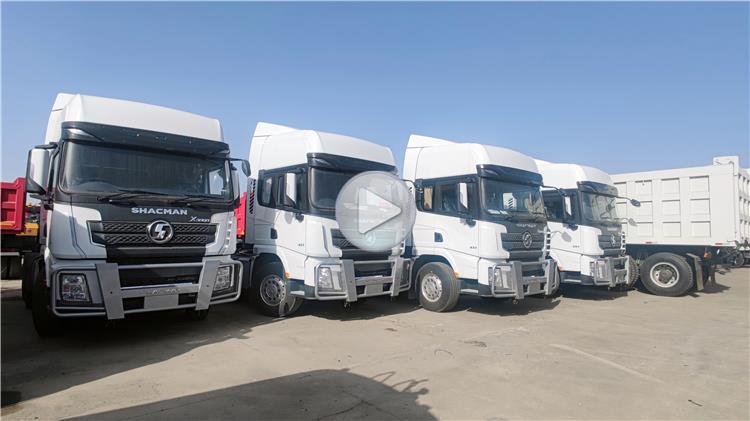

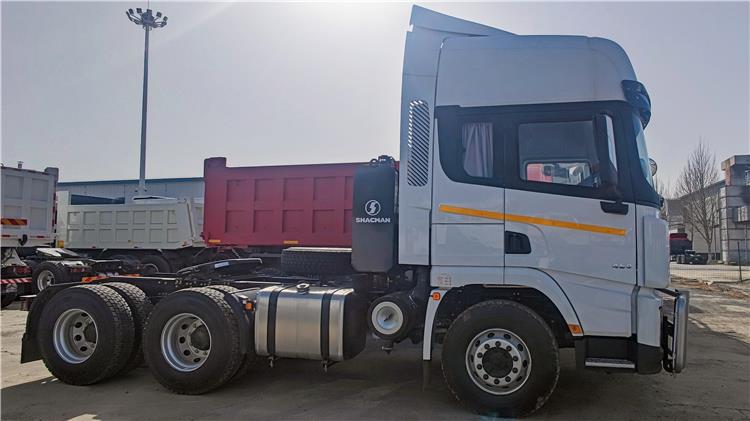

Product: Shacman x3000 tractor truck
Gearbox: 12jsd200t-b
Engine: wp12.430e201 430hp euro2
Wheelbase: 3175+1400mm
Front Axle: man 7.5t
Rear axle: man 13t
Chassis: 850×300（8+5）
Tire: 12.00R20
Fuel tank: 400l
Color: customer's request
