The Howo 6x4 430 tractor truck uses 420 horsepower, which makes the Howo 6x4 430 tractor truck faster and has a stronger carrying capacity. It is reliable, can quickly disconnect the tractor and trailer, and works efficiently. If you need, we can also provide trailers, which can provide you with support services.
Howo 6x4 430 tractor truck uses a WD615.47 engine, which is powerful enough to drive on African roads. The Howo 6x4 430 tractor truck is also nimble and has better maneuverability when towing.

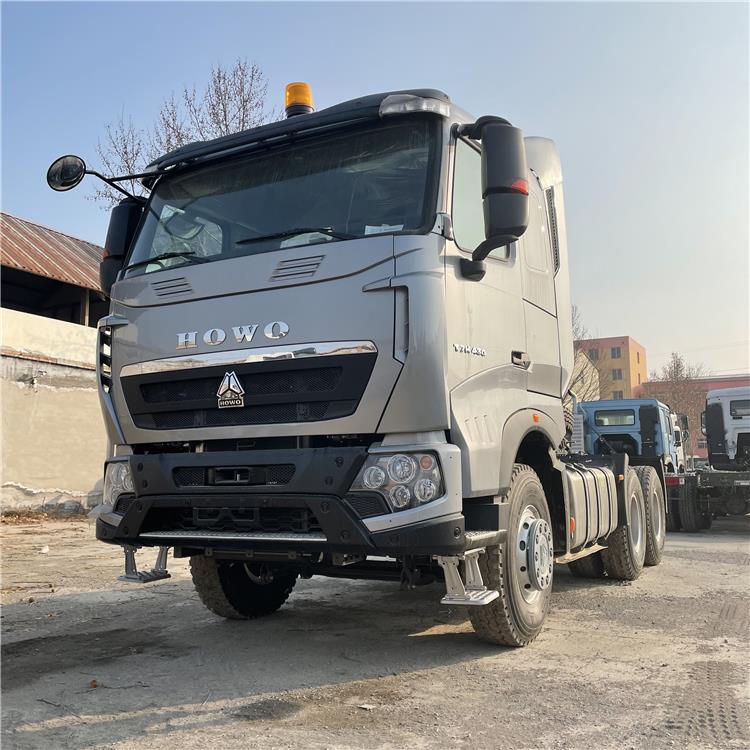

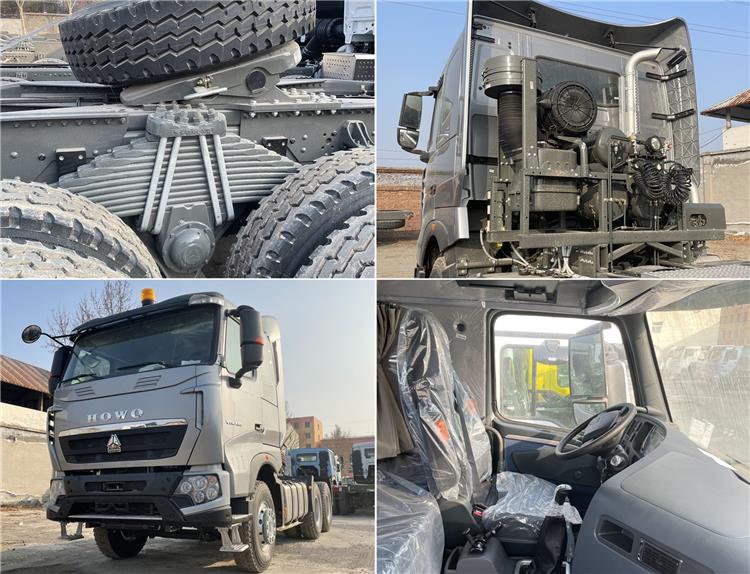

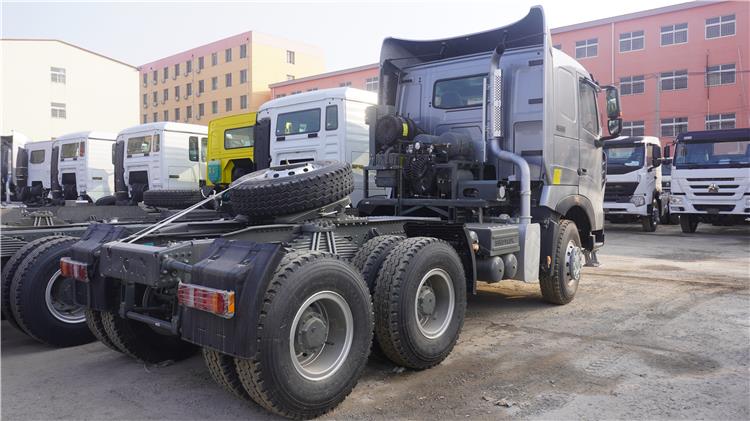

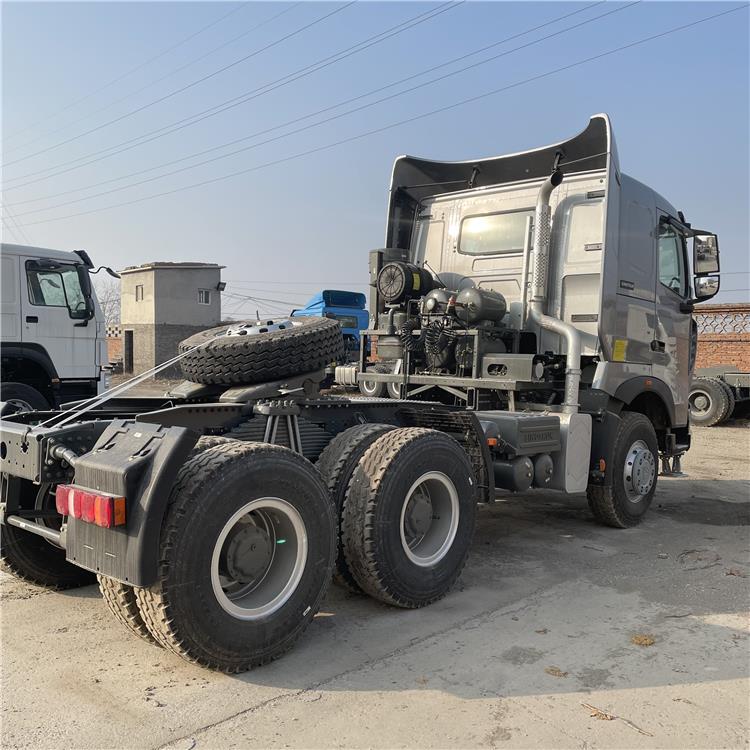

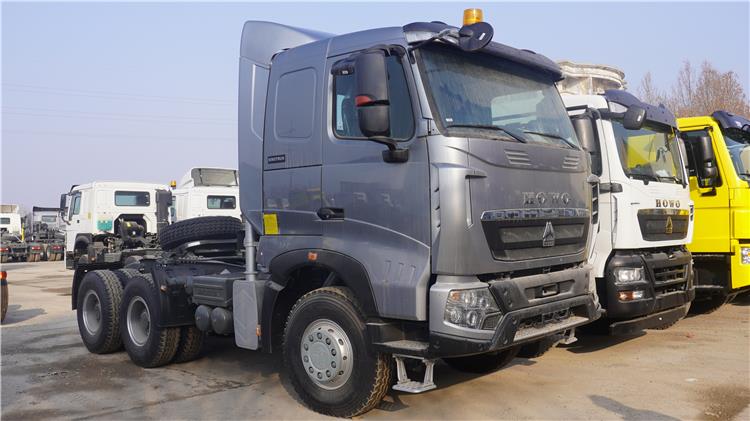

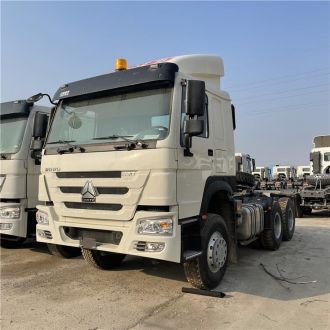

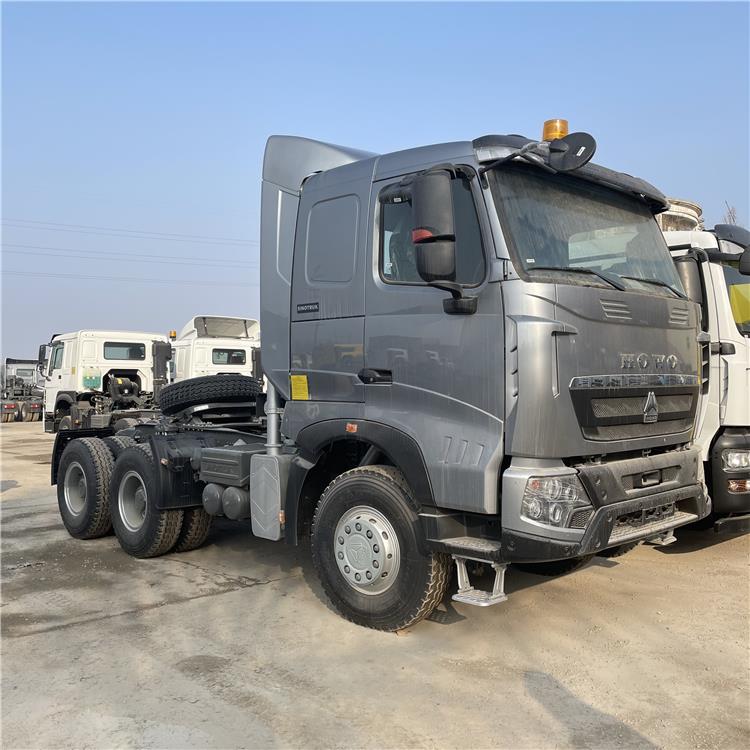

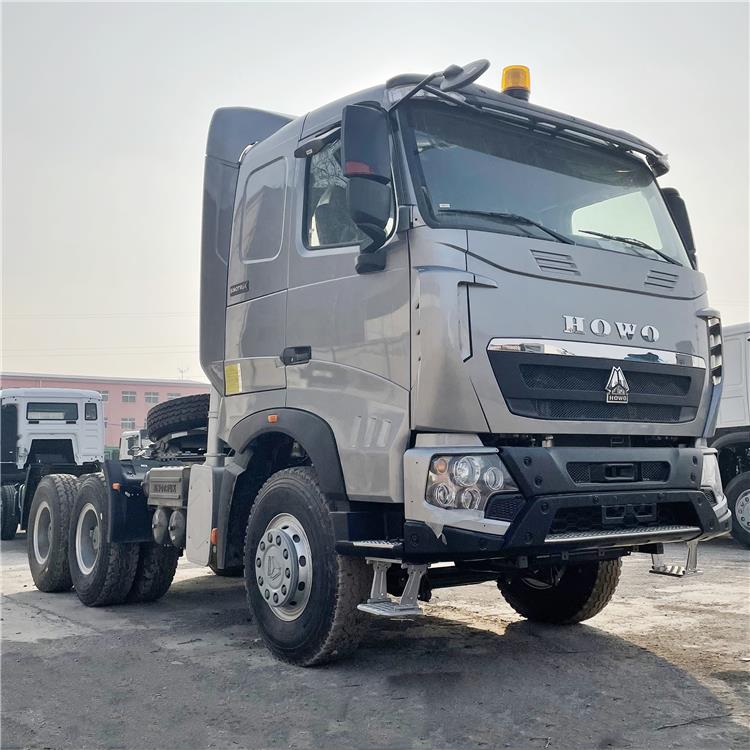

Howo 6x4 430 Tractor Truck - Sinotruck
Howo 6x4 430 Tractor Truck - Sinotruck
Model: ZZ4257V3241W
Engine:
Engine model: D12.42-20, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling, mechanical high-pressure oil pump system
Maximum output: 430PS (309kW) at 2000 rpm
Maximum torque: 1820Nm at 1100-1400rpm
Bore: 126mm
Stroke: 155mm
Displacement: 11.596L
Clutch: SINOTRUK’s 420C diaphragm spring clutch, hydraulically operating with air assistance
Wheels&Tyres:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Driver'sCab: Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, warming light
Dimensions inmm:
Wheel base (mm): 3200+1350
Front wheel track (mm): 2022/2041
Rear wheel track (mm):1830/1830
Overhang(front/rear) (mm):1500/725
Approach angle(°):16
Departure angle(°):70
Overall Dimension (mm): 6800x2496x2958
Transmission:
Transmission, model HW19710, 10 forward and 2 reverse
Ratio: 4.42 4.8 5.73
Front Axle: New HF9 series, with drum brake system
Rear Axle: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Steering: ZF8118, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
Weight in kg:
Rated loading capacity at fifth wheel (kg):15660
Dead weight (kg):9210
Gross vehicle weight (kg):25000
Gross combination weight（kg）：7000
Front axle loading capacity (kg):9000
Rear axle loading capacity (kg):2*16000
Performance Maximum driving speed(km/h):102(reference data)
Maximum gradeability (%):33
Minimum ground clearance(mm):265
Minimum turning radius (m):18.5
Fuel consumption(L/100km):40(reference data)
TITAN is authorised distributor of SINOTRUK, We produce New SINOTRUK Howo Trucks according to your order.
SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.
Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.
SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.
SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
