Howo 371 Crane Truck Mounted are often used in various loading and unloading, installation and lifting operations, especially for field lifting, operating in narrow places such as stations, ports, warehouses, and construction sites.
Crane truck is a kind of equipment that realizes the lifting, turning and hoisting of goods through hydraulic lifting and telescopic system. It is usually assembled on trucks. Howo Crane Truck can be used not only as a truck-mounted crane but also as an engineering transport vehicle, or for cargo.
Howo Crane Truck is often used in various loading and unloading, installation and lifting operations, especially for field lifting, operating in narrow places such as stations, ports, warehouses, and construction sites.
Howo 371 Crane Truck Mounted 6X4 for Sale Types, Specifications, Price
Howo 371 Crane Truck Mounted 6X4 for Sale Types, Specifications, Price
Howo 371 Crane Truck Mounted 6X4 for Sale Types, Specifications, Price

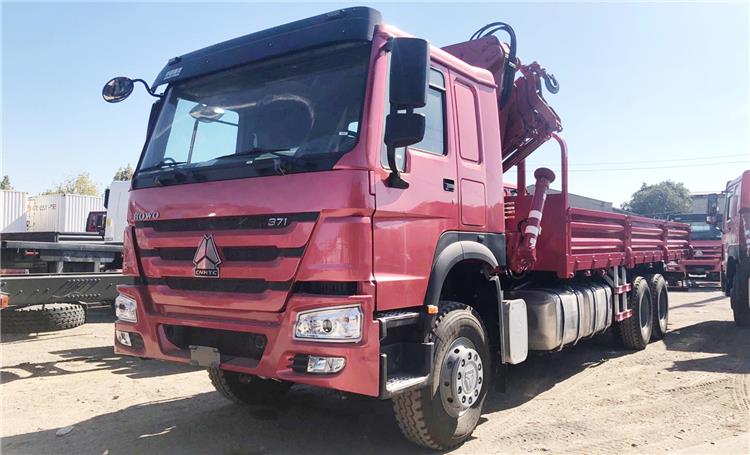

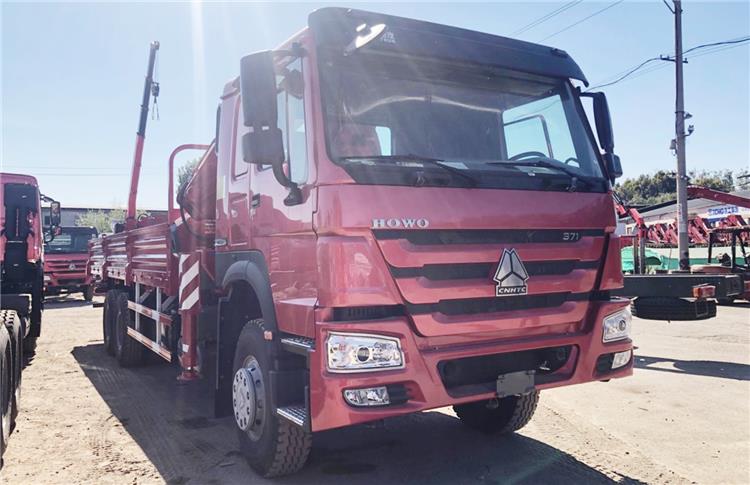

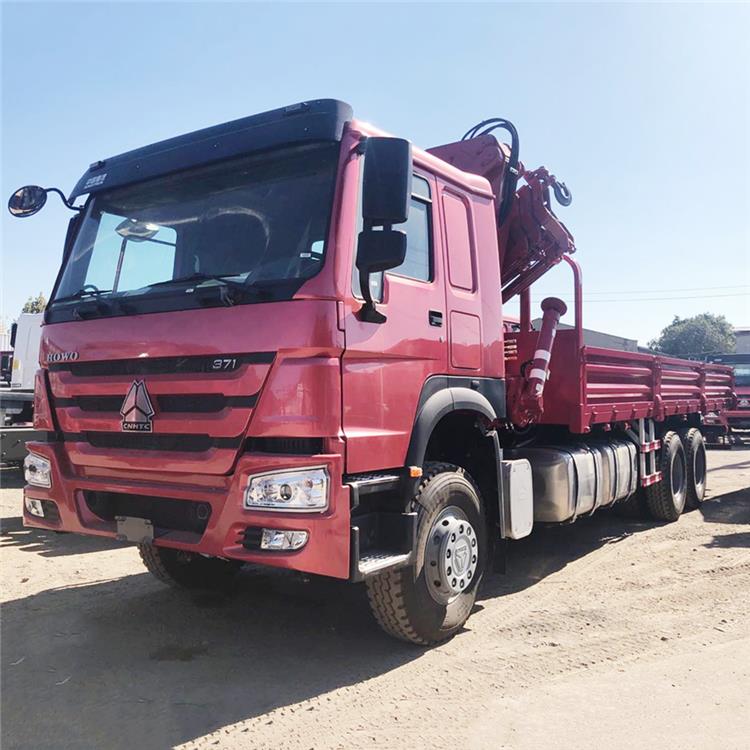

Model: Howo 371 Crane Truck Mounted

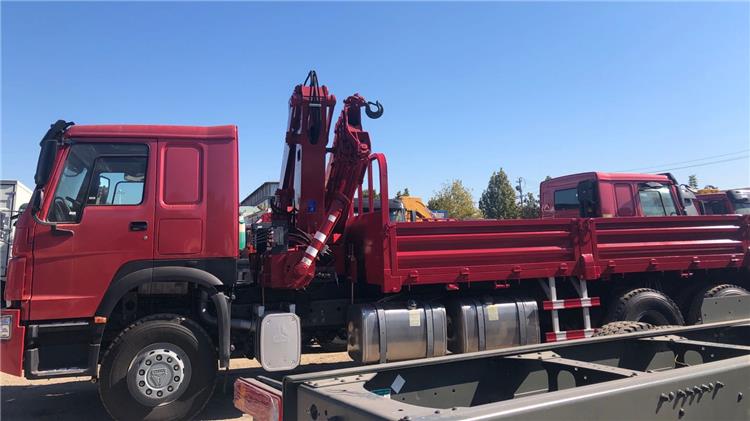

Crane Parameter
Crane model: SQS125, XCMG brand
Rate lifting weight: 5 Ton
Max Lifting Moment: 12.5 tm
Max Oil Flow of Hydraulic System: 32 L/min
Max Pressure of Hydraulic System: 18 Mpa
Oil Tank Weight: 90L
Crane Weight: 2170 kgs
Rotation Angle: 360° All Rotation
Installation Space: 900 mm
Truck Chassis
Overall Dimension: 10200×2500×3700mm
Cargo box size(L*W*H)(mm): 8500×2300×600mm
Driving type: 6X4 Left hand or right hand
Engine: 371HP
Cab: A7-W Long Cabin, with two seats and one bed, with Air Conditioner and electric window.
Transmission: HW19710, 10 speeds forward and 2 speeds reverse.
Front Axle: 9 Ton
Driving Axle: 16 Ton
Tire: 12.00R20,12R22.5
Fuel Tank: 400L
Payload: 30-40 Ton
TITAN is authorised distributor of SINOTRUK, We produce New SINOTRUK Howo Trucks according to your order.
SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.
Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.
SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.
SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
