TITAN can make the removable gooseneck, with the capacity of 60/80/100/120 ton. To meet your transport needs and your local regulations, we can customize different configurations removable gooseneck trailer for you.
TITAN removable gooseneck trailers for transport excavator and construction equipment, large machinery transportation. TITAN removable gooseneck lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.
Removable gooseneck main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer.

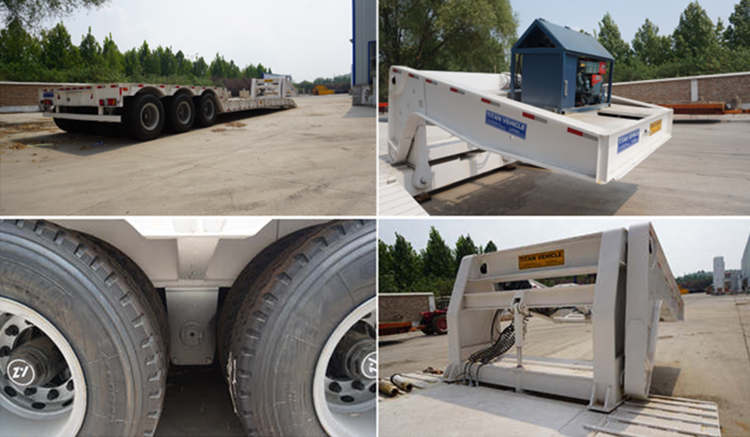

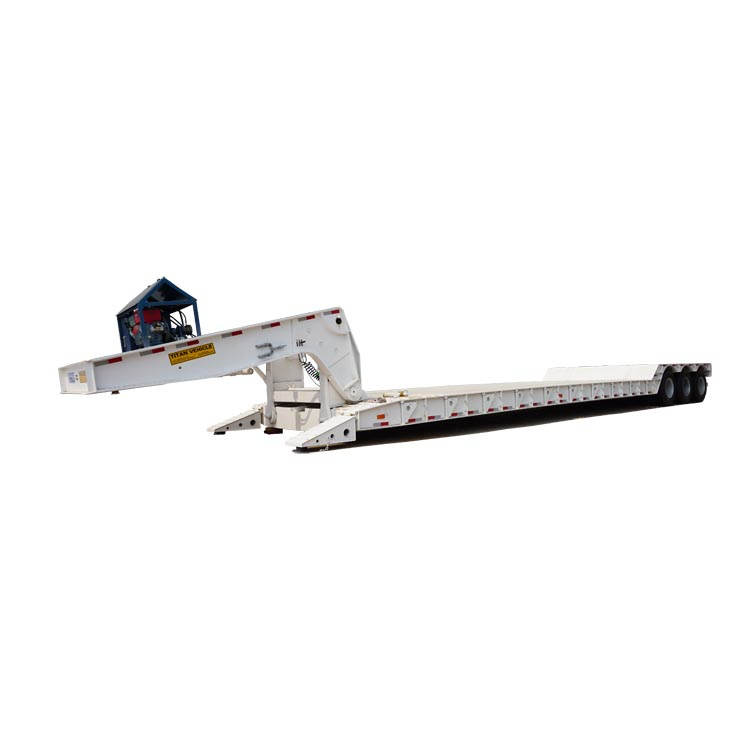

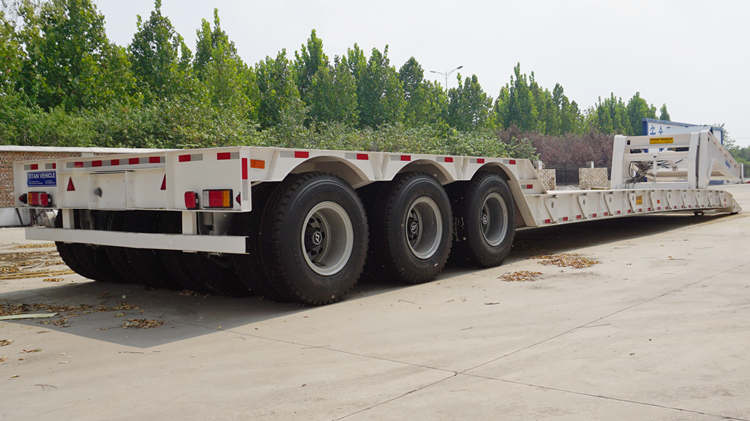

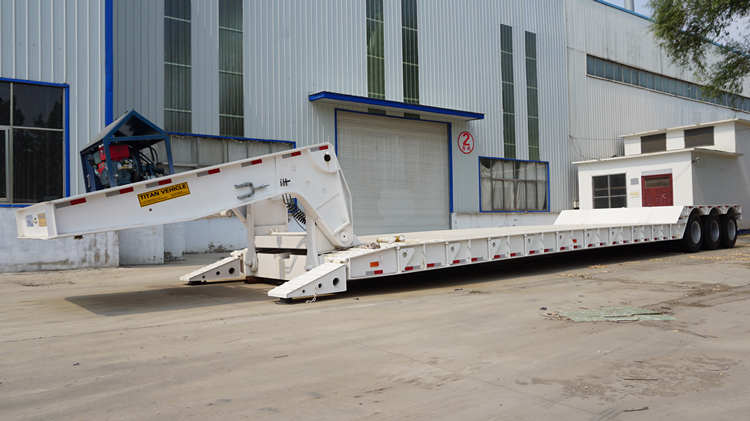

60 Ton Removable Gooseneck for Sale In Zimbabwe Harare
60 Ton Removable Gooseneck for Sale In Zimbabwe Harare
60 Ton Removable Gooseneck for Sale In Zimbabwe Harare
Overall dimension：16000mm * 3000mm *2500mm
Loading capacity: 60 ton
Axles：3 axles
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.
