35000 Ltrs Oil Tanker Trailer
35000 Ltrs Oil Tanker Trailer

35000 Ltrs Oil Tanker Trailer

13500 USD

TITAN 35000 ltrs oil tanker trailer can transport 35000 liters fuel, oil, diesel, gasoline and other liquids. TITAN 3 axles fuel tanker adopt famous brand axle.

SKU: 35000 Ltrs Oil Tanker Trailer
MPN: TITAN9504005
Brand: TITAN

Product Description´╝Ü

TITAN 35000 ltrs oil tanker trailer adopt advanced design concept. We can customized the semi tanker for sale for you according to your request. According to your different use, we can provide you with suggestions based on your different user needs.

And we TITAN offer carbon steel, stainless steel or aluminum alloy material tanker trailers. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.

35000 Ltrs oil tanker trailer mainly transports gasoline, diesel, crude oil, lubricating oil, olive oil, soybean oil, olive oil, alcohol, edible oil. Stainless steel tanker trailer for sale can also be used to transport chemical products such as sulfuric acid, hydrochloric acid, phosphoric acid and caustic soda. raw material.

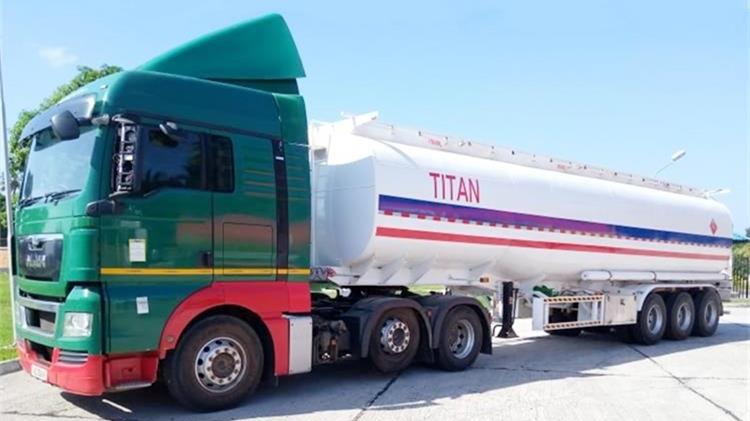

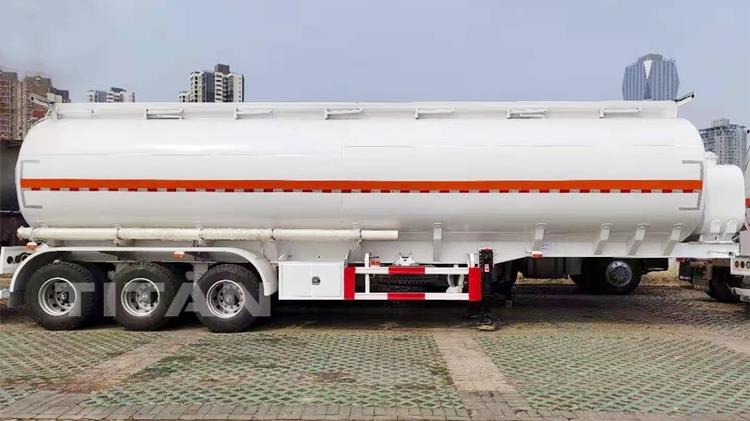

35000 Ltrs Oil Tanker Trailer for Sale In Zimbabwe with Dimensions Capacity

35000 Ltrs Oil Tanker Trailer for Sale In Zimbabwe with Dimensions Capacity

35000 Ltrs Oil Tanker Trailer for Sale In Zimbabwe with Dimensions Capacity

35000 Ltrs Oil Tanker Trailer for Sale In Zimbabwe with Dimensions Capacity

35000 Ltrs Oil Tanker Trailer for Sale In Zimbabwe with Dimensions Capacity

35000 Ltrs Oil Tanker Trailer for Sale In Zimbabwe with Dimensions Capacity



Specification´╝Ü

Shape: Round or square

Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(m³): 25-60m³

Tank Body Material: 5mm or 6mm/Q235 carbon steel

End plate: 5mm or 6mm/Q235 carbon steel

Manhole Cover: Carton steel

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

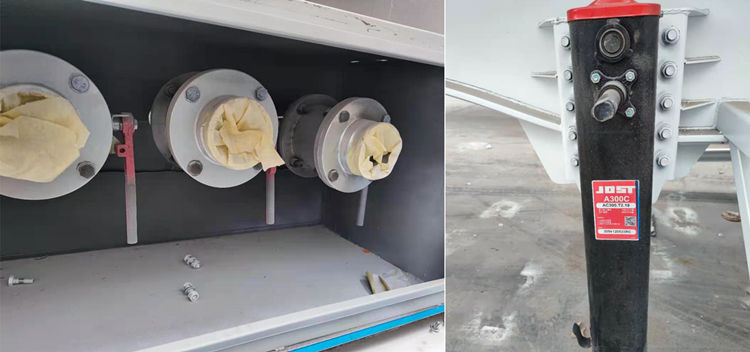

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension /Germany or America type /Air Suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers



Advantage:

1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

2. The tank body is automatically welded by an advanced large-scale special welding machine.

3. The TITAN tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.

4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.

6. The waved board reduces the impact of the liquid on the tanker.

7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.

8. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.



Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.

Tri Axle 45000 Liters Fuel Tanker Trailer for Sale In Ghana

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
