The flatbed trailer for sale is 12 meters in shape, with a straight beam style, high strength, high toughness, and greater bearing capacity. The main structure of the tri axle trailer frame is made of high-strength materials. The suspension uses a shaft diameter of 70mm. The axle uses a 16 Ton TITAN axle, high-precision, low rolling resistance high-quality bearings, longer service life, and stable vehicle performance at high speeds for a long time. The flatbed trailer for sale has a large braking force, more sensitive braking, and more timely response.
The container turn lock of the flatbed trailer for sale supports 12# thickened channel steel, does not cut the side beam, has high strength, and accurate positioning. The inclined support is fully added, which is more solid. The welding is full, uniform and beautiful.

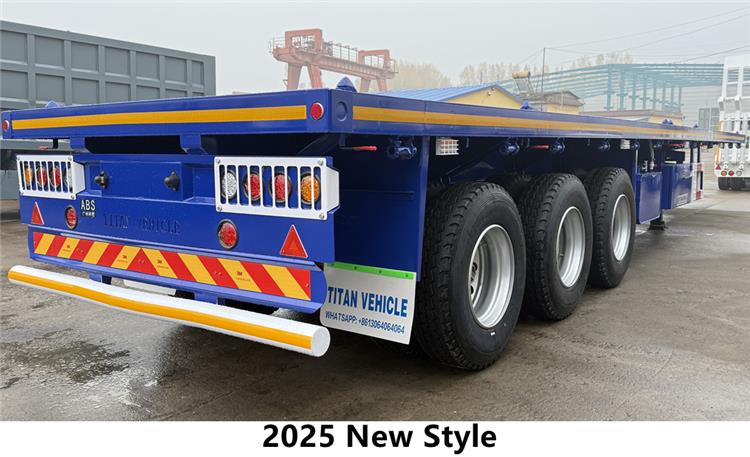

2025 New Tri Axle Flatbed Trailer for Sale In Ghana
2025 New Tri Axle Flatbed Trailer for Sale In Ghana
2025 New Tri Axle Flatbed Trailer for Sale In Ghana
2025 New Tri Axle Flatbed Trailer for Sale In Ghana
2025 New Tri Axle Flatbed Trailer for Sale In Ghana
Model: Tri Axle Flatbed Trailer
Dimension(mm): 12500x2500x1510mm
Side Beam: Q235 steel 160mm steel channel

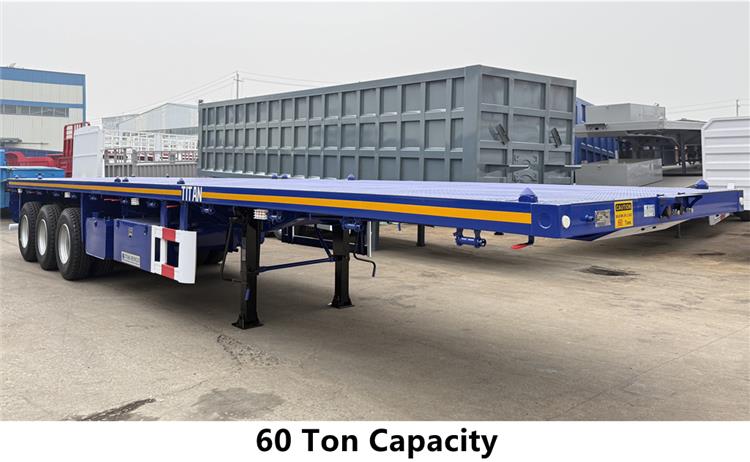

Loading capacity(ton): ≤60T
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand 28tons
Suspension: Mechanical suspension
Axles: 3 axles, 16T TITAN
Tire: 12 units, 12R22.5

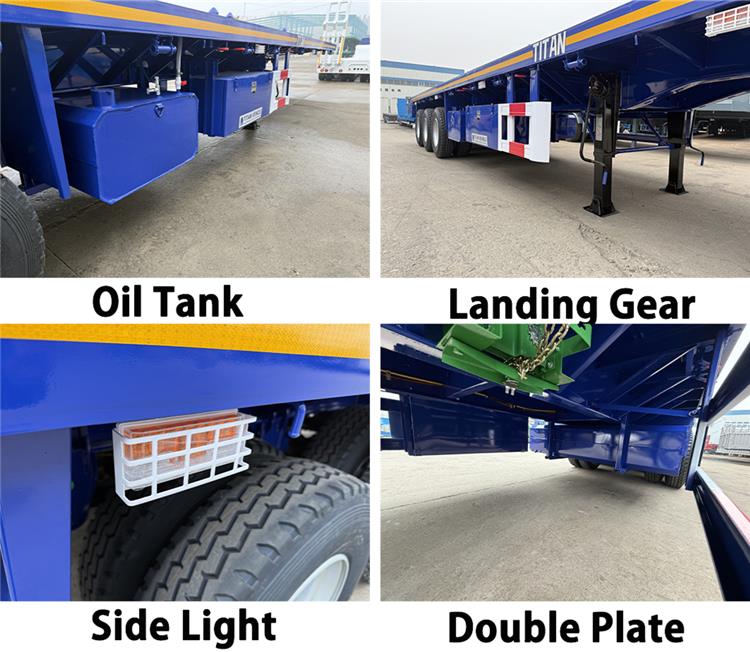

The legs of the flatbed trailer for sale are reinforced with triangles to prevent tilting from front to back and left to right. The whole vehicle has been tested with a 65-ton concentrated load, and the beam has no collapse and the side beam has no deformation.

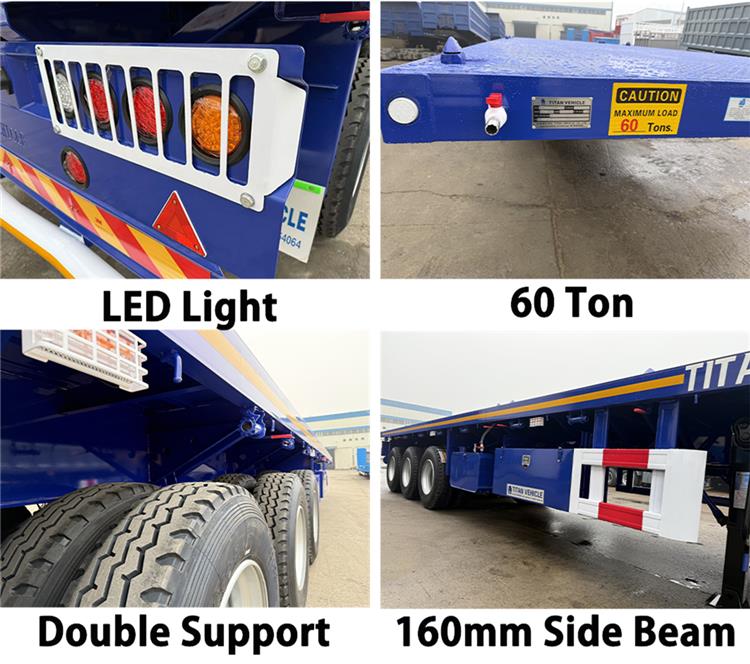

The side beam height of the tri axle trailer is 160mm, which makes the whole vehicle less deformed. All beams are supported, and 6 channels are laid on the beams, so the vehicle is not easy to deform. The bottom plate of the tri axle trailer is a 3mm patterned plate, which is thicker, more durable and not easy to deform.
All lines of flatbed trailer for sale are high-strength pneumatic steel wires, and all accessories and wearing parts of tri axle trailer are guaranteed to be genuine.
Tri axle trailer uses powder spray electrophoresis paint. In the container lock part, the flatbed trailer for sale design details do not cut the side beam, ensuring the integrity of the side beam and improving the bearing capacity of the side beam.
