Dear friends,

I am Coco from Shandong TITAN Vehicle Co.,Ltd. We are professional manufacturer of semi trailers. We delivered 3 Axle 80 Ton Lowboy Trailer to our customer from Zimbabwe recently. Total cost is USD 22,000. We would like to share with you, and hope it is useful for you.

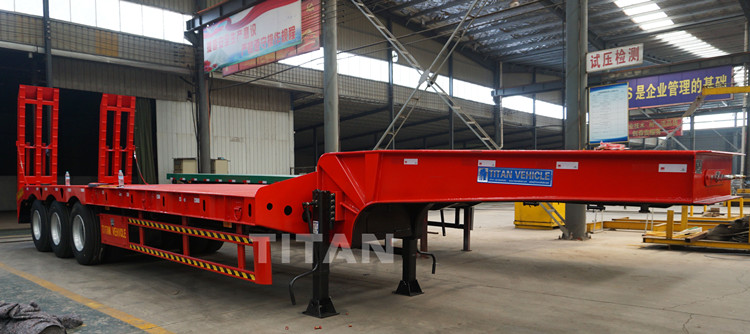

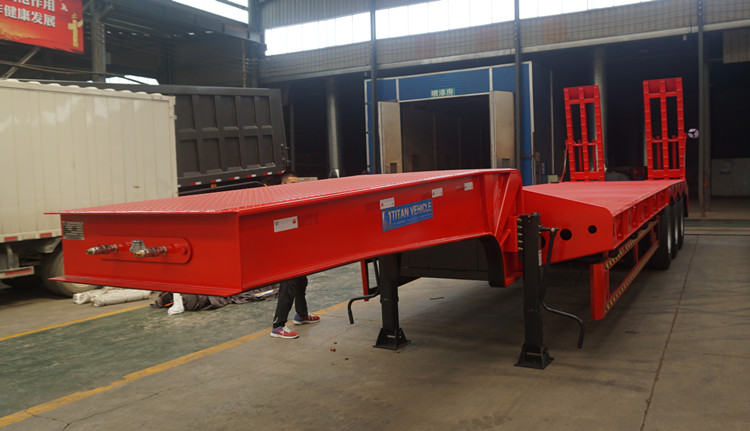

3 Axle Low Bed semi Trailer

The detailed specifications are as following

Overall dimension: 16000mm * 3000mm *1250mm

Loading capacity(T): 80T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 12R22.5

Suspension: Mechanical suspension

Spring leaf: 16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 550mm, Upper plate: 20mm, Middle plate: 14mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

And we made many improvements for our lowbed trailer to guarantee the quality.

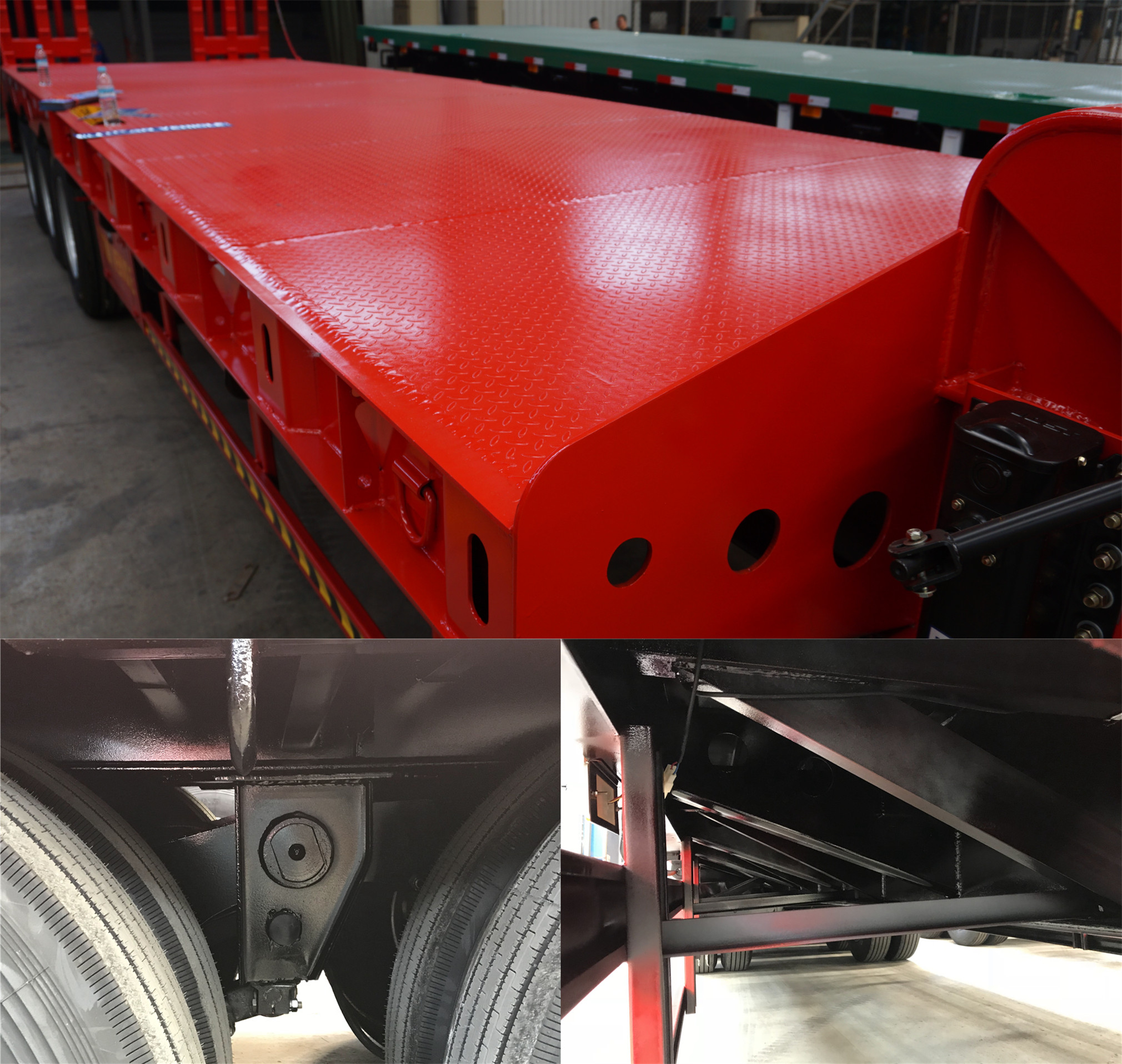

1) The gooseneck is designed to push down to avoid tilting while heavy load. The gooseneck part of main beam is also reinforced with double vertical plate.

2) Side beam adopts “H” shape design, height is 300 mm, width is 140 mm, which match with main beam perfectly. Side beam is welded with high strength steel T700. The bearing capacity is twice that other steels.

3) Ladder for our low bed trailer is also welded with high strength steel H60. It has strong bearing capacity, and can effectively ensure that the weight of excavators or other heavy equipment can pass through the ladder without deformation and damage.

4) We adopts the Polyurethane paint for all of our trailers which has high adhesion, more beautiful color. It will not fall off after using 5 years.

If have interest or want to learn more about our lowbed trailer, please contact us at any time. We will back to you as soon as possible.
