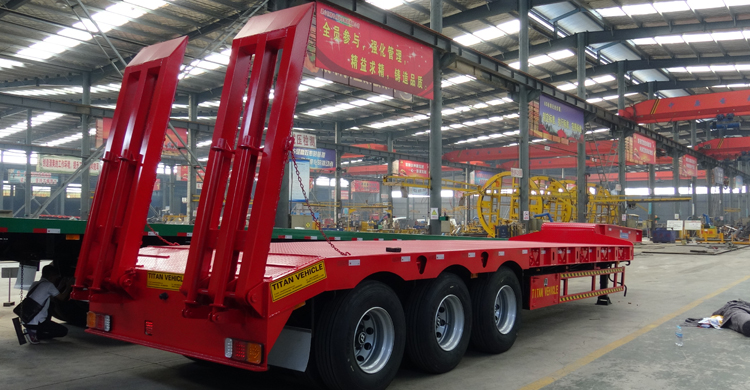

Today, I’d like to share the details about our hot sell 3 axles 60ton load low bed trailer with you:

with you:

Dimension(L*W*H) :13000 * 3000 *1250mm

Capacity: 60 Ton

Axle : 3 axles, 16ton Titan

Tire: 12R22.5,12units,TITAN

Material: Q460C high strength steel

Worktable length: 9500mm

Main beam: upper is 20mm thick;   bottom is 20 mm thick

middle is 500mm*12mm

Side beam: 300mm*140mm H-type (8/6/8mm)

Bottom platform:  5mm checkered plate

Spring: 10 pcs,16 mm thick

Suspension: 10mm Mechanical suspension with 70mm center balance pin

Landing gear: 28 ton

Brake system: Emergency relay valve

Ramp: Mechanical heavy duty ramp

Light: LED light

Tool box: 1 set tool box

Surface coating: Polyurethane paint

Color:  Customized

Spare wheel carrier: 1 pcs

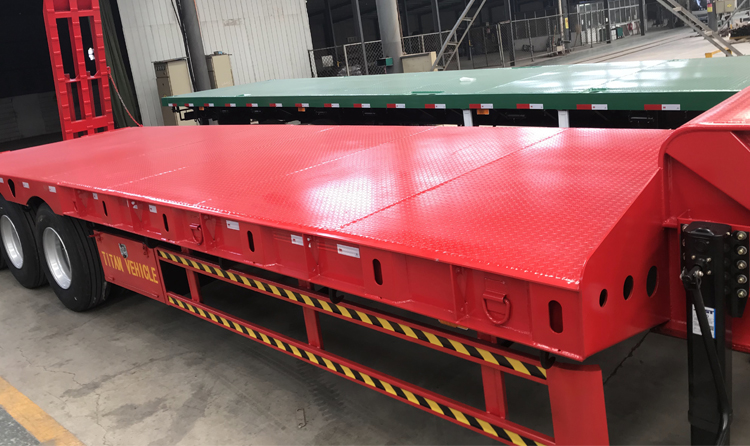

The floor plate of Titan low bed trailer is the 5mm diamond plate, It is thicker than the  4mm floor plate of other factories. The floor plate is strong and durable, and is not easy to deform.

The main beam is made of Q460C high-strength manganese steel (HG60), which has high strength and good toughness. The yield strength of Q460C steel is ≥620Mpa, and its bearing capacity is 5 times greater than the trailers made of Q345 steel.

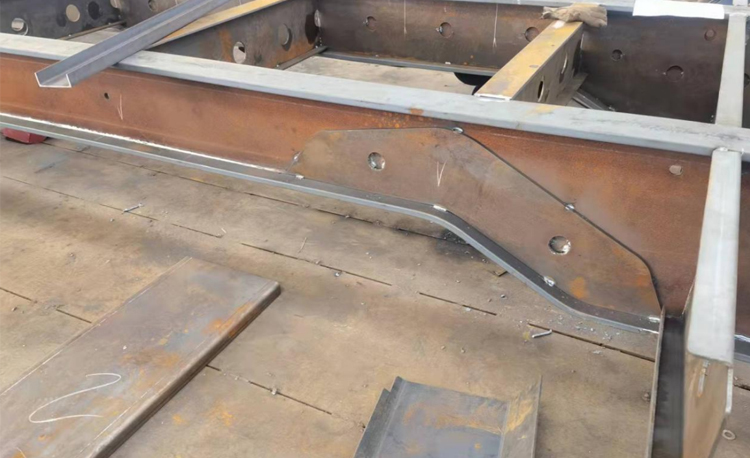

Upright plate above the rear axle Internal and external reinforcement, three-layer upright plate

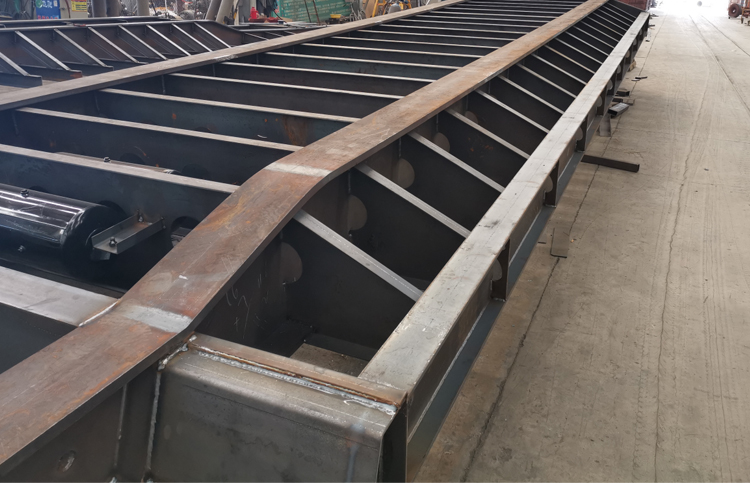

The side beam adopts "H" shape design and is welded with HG60 steel. The height is 300mm, width is 140mm and thickness is 8mm. Our material is twice the bearing capacity of other steel. So, it will not deform after ten years of use. Anti-bumpiness performance is increased by 3 times.

inclined supports hold side beams and main beam effectively hold together, and it made of manganese plate with thickness of 6mm. And the distance between each inclined supports will not exceed 500mm

The low bed semi trailer is mainly used to transport heavy duty equipment. Such as excavator, crane and other heavy machinery.
