Hope you have a good day, this is Kiki from Titan Vehicle. Our company was established in 2004, specializing in the production of this flatbed trailer for more than 18 years, we also specialize in producing other kinds of semi-trailer same like low bed trailer, fuel tank trailer, cement tank trailer....

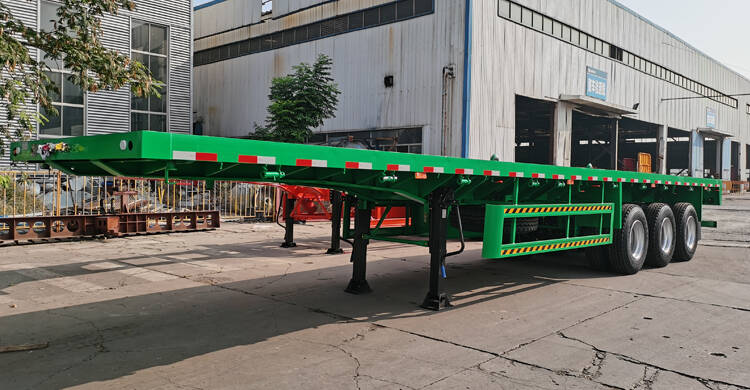

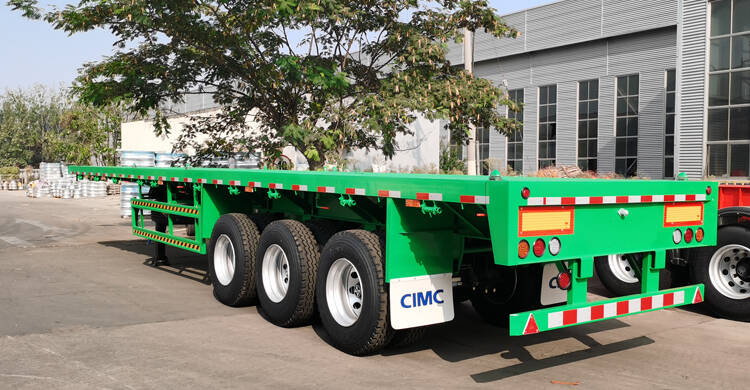

The dimension of this flatbed trailer is 12500*2500*1530mm. The loading capacity is 50 tons. It is mainly used for transporting 20&40ft containers or some other cargo.

We also have the 2 axles, 3 axles, 4 axles, the model with front board for your selection, and the color could be painted as your request. We can also provide customized services according to your needs 100%.

The specifications about flatbed trailer as below:

Dimension(L*W*H): 12500*2500*1530mm

Machine Weight: About 8.1 tons

Loading Capacity: 50 Tons

Axle: TITAN 4 axles , 13 tons

Tire: 12R22.5 20PR, 16 units

Material: Q345 high strength steel

Main Beam: middle plate is 500*8mm, upper thickness is 14mm, bottom thickness is 16mm

Side beam: 160mm channel steel

Bottom platform: 3mm, checkered plate

Spring: 10 pcs,13 mm thick spring

Suspension: 8 mm thick, 70 mm king pin

Landing gear: TITAN 28 tons

Brake system: Emergency relay valve

Light: LED light

Tool box: 1 set tool box

Paint: Polyurethane paint

Color: Optional

Spare tire rack: 2PCS

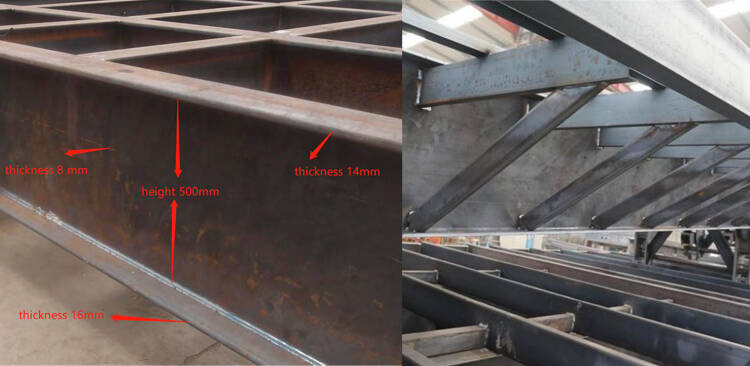

Main beam:

We adopts the Low carbon high strength alloy steel Q345 to make the main beam, it is composed of upper plate, lower plate and middle plate. It has a higher carry capacity and service life of more than 10 years.

Welding:

We use automatic submerged arc welding process to weld the main beam. There is no interface between the upper, middle and lower plates of the beam, so it can ensure the integrity of the main beam and make the beam more solid and durable.

Side beam and through beam:

The side beam thickness is 160mm。

100mm channel for through beam, and all of the through beam are supported by the Inclined support frame, and the distance of these frame no more than 500mm, which can ensure the trailer not easy to deform.

If you want to learn more about flatbed trailer, please contact us at any time
