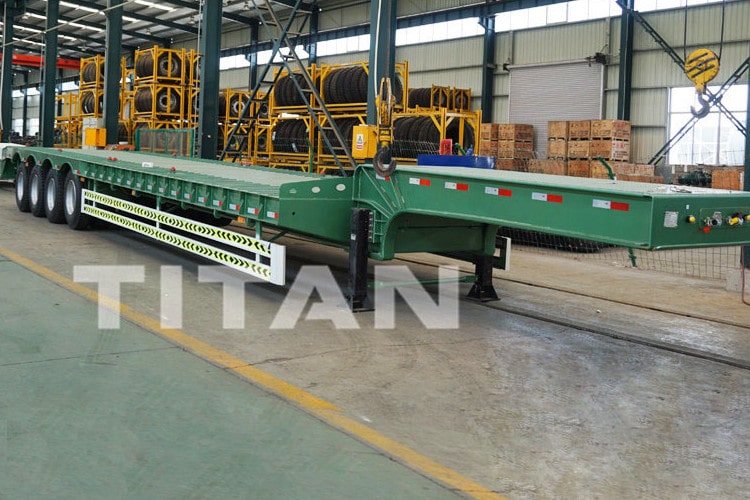

I am Jack from Shandong TITAN Vehicle Co.,Ltd. We are professional manufacturer of semi trailers.This is a 4 Axle low bed traler  ordered by our customer recently. Total cost is $27464. We would like to share with you, and hope it is useful for you.

The detailed specifications are as following

Overall dimension: 165000mm * 3000mm *2500mm

Loading capacity(T): 100T

Axle: 16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 12R22.5

Suspension: Mechanical suspension

Spring leaf: 120mm(long)*16(Thickness)mm*10 layers

Kingpin: JOST brand 10mm(thickness)*70

Landing gear: JOST brand

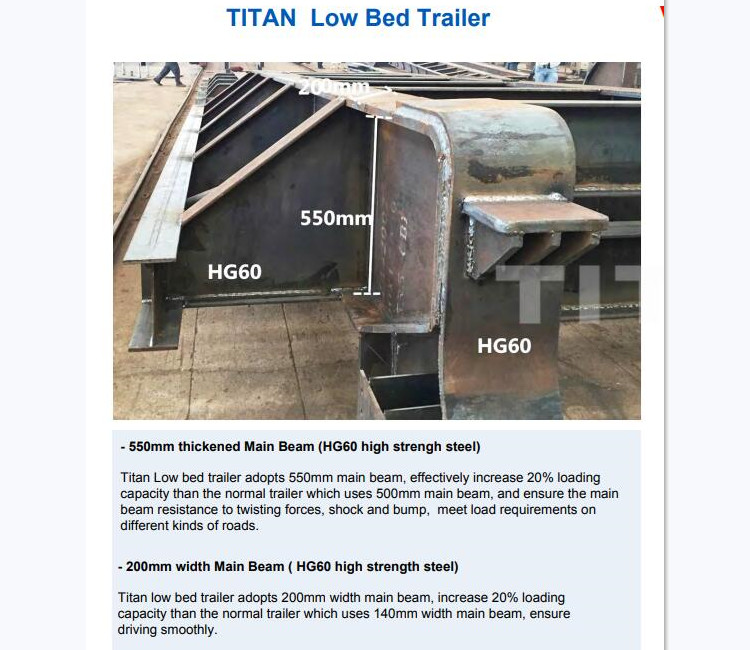

Main beam: Height: 550mm, Upper plate: 140mm, Middle plate: 14mm, Lower plate: 5mm, Material: HG60 steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

And we made many improvements for our lowbed trailer to guarantee the quality.

1) Through feedback from our customers,we have made many improvements.The gooseneck is designed to push down to avoid tilting while heavy load. The gooseneck part of main beam is also reinforced with double vertical plate.

2) Side beam adopts “H” shape design, height is 300 mm, width is 140 mm, which match with main beam perfectly. Side beam is welded with high strength steel T700. The bearing capacity is twice that other steels.

3) Ladder for our low bed trailer is also welded with high strength steel H60. It has strong bearing capacity, and can effectively ensure that the weight of excavators or other heavy equipment can pass through the ladder without deformation and damage.

4) We adopts the Polyurethane paint for all of our trailers which has high adhesion, more beautiful color. It will not fall off after using 5 years.

If you are interest in or want to learn more about our lowbed trailer, please contact us freely. We will back to you as soon as possible.
